DIY Gate Construction: Save 70% with This Proven Method

Building a DIY gate saves 50-70% versus professional installation while allowing full customization for your property's dimensions and style. This guide delivers proven techniques for constructing durable, sag-resistant gates using beginner-friendly methods and precise material calculations.

Why Build Your Own Gate? The Real Cost and Customization Benefits

Most homeowners spend $800-$2,500 on professionally installed gates. With basic woodworking skills, you can create equally sturdy gates for $250-$600 using reclaimed lumber or standard materials. The key advantages:

• Exact size matching - No more awkward gaps in your fence line
• Material control - Choose weather-resistant cedar instead of cheap pine
• Timeline flexibility - Work at your own pace without contractor delays

Planning Your Gate Project: Critical First Steps

Skipping proper planning causes 80% of DIY gate failures. Follow this sequence before buying materials:

Site Assessment Checklist

Factor	Measurement Tip	Common Mistake
Opening width	Measure at top/middle/bottom	Assuming square openings
Ground slope	Use water level for accuracy	Ignoring 2+ inch grade changes
Post strength	Test with pry bar	Using rotted existing posts

Material Selection Guide

Choose based on your climate and budget:

• Wood options: Cedar (best for wet climates), Redwood (premium cost), Pressure-treated pine (budget but warps)
• Metal alternatives: Galvanized steel tubing (requires welding skills), Aluminum (lightweight but expensive)
• Hardware must-haves: 1/2" lag bolts (not screws), Heavy-duty strap hinges, Spring-loaded latch

Step-by-Step Construction: Avoiding the Sagging Trap

Gate sagging ruins most DIY attempts. Our reinforced triangle bracing method prevents this:

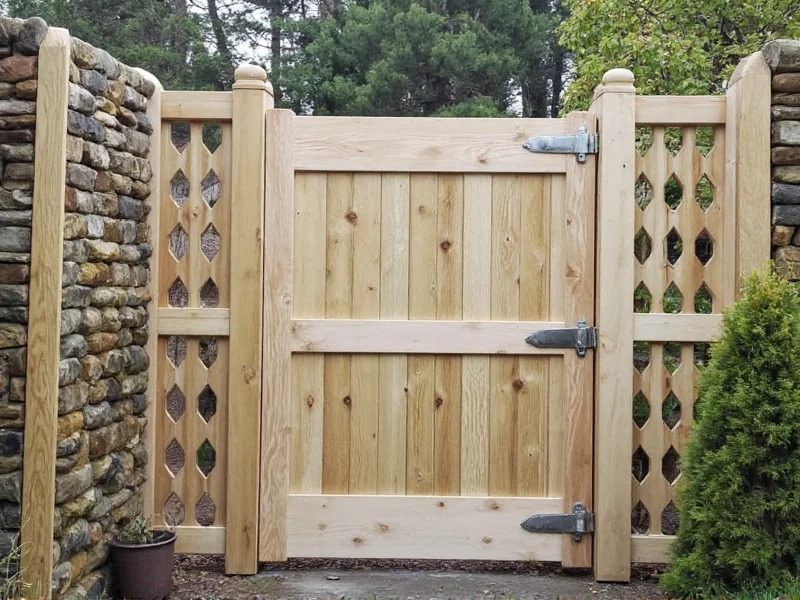

Phase 1: Frame Assembly (45 Minutes)

1. Cut two vertical stiles and top/bottom rails to exact measurements
2. Create 45-degree bevels on rail ends for seamless joints
3. Assemble rectangle with exterior-grade wood glue and 3" deck screws
4. Crucial step: Install diagonal brace from top hinge corner to bottom latch corner

Phase 2: Panel Installation (30 Minutes)

For wooden gates:

• Space boards with 1/4" gaps for expansion
• Use hidden fasteners or countersunk screws
• Leave 1" clearance at bottom for ground clearance

Phase 3: Hardware Mounting (20 Minutes)

Proper hinge placement prevents stress:

• Position top hinge 6" from frame top
• Place bottom hinge 12" from frame bottom
• Use 3" lag bolts through both stiles into post
• Install spring latch at handle height (36")

Weatherproofing and Maintenance Secrets

Extend your gate's life with these professional techniques:

• Pre-hang treatment: Soak end grains in wood preservative for 24 hours
• Painting order: Top/bottom first, then vertical surfaces (prevents moisture trapping)
• Seasonal check: Every spring, tighten hardware and inspect for rot at ground contact points
• Budget fix for sagging: Install turnbuckle cable system ($15 fix)

FAQ: DIY Gate Construction Questions Answered

How do I prevent my DIY gate from sagging over time?

Install a diagonal brace running from the top hinge corner to bottom latch corner. Use 2x4 lumber for gates over 4 feet wide. Always secure hardware with 1/2" lag bolts into solid posts - screws alone will pull out under weight.

What's the most cost-effective material for a beginner's DIY gate?

Reclaimed cedar fencing planks cost 60% less than new lumber and resist warping better than pressure-treated pine. Look for construction site salvage or online marketplace listings. Avoid plywood cores as they absorb moisture and swell.

How much clearance should I leave under a DIY gate?

Maintain 1-1.5 inches of ground clearance. This prevents scraping on uneven terrain while allowing space for gravel or grass growth. In snowy climates, increase to 2 inches to accommodate snow buildup without binding.

Can I build a driveway gate without concrete posts?

Yes, but only for gates under 6 feet wide. Use 6x6 pressure-treated posts set in 24" diameter gravel-filled holes (18" deep). Compact gravel every 6 inches during installation. Concrete remains essential for gates over 150 lbs or in high-wind areas.
