Installing a DIY board and batten wall transforms plain surfaces into textured, dimensional features using vertical boards ( battens ) spaced evenly across a wall. This project requires basic carpentry skills, costs $100-$300 for materials, and takes 1-2 weekends to complete—making it ideal for homeowners seeking affordable, high-impact upgrades without professional help.
Why Board and Batten Walls Are Worth the Effort
Board and batten walls add architectural interest to blank spaces while hiding wall imperfections. Unlike wainscoting, this technique spans floor-to-ceiling with consistent vertical lines that create height and rhythm. Homeowners choose this style for its versatility—it works in modern farmhouse entries, contemporary living rooms, or rustic bedrooms. The real appeal? You control the scale, spacing, and finish to match your aesthetic.
Custom spacing creates different visual effects—tighter gaps for modern looks, wider for rustic charm
Planning Your Project: Key Decisions Before Starting
Skipping planning causes costly mistakes. Address these questions first:
- Wall purpose: Will it be painted, stained, or left natural? This affects material choices
- Scale: Standard battens are 1x2 or 1x3 pine; larger rooms handle wider boards
- Spacing: Consistent gaps (3-6 inches) create rhythm; irregular spacing feels intentional in rustic designs
- Height: Full-height installations maximize impact; partial walls work in rentals
Pro Tip: Use painter's tape to mock up your layout first. Live with it for 24 hours to confirm spacing feels right in your space.
Material Selection: Beyond Basic Pine
While pine is budget-friendly, these alternatives solve common DIY frustrations:
| Material | Best For | Cost Range | Workability |
|---|---|---|---|
| Pine (1x2, 1x3) | Painted finishes, first-time DIYers | $1.50-$2.50/ft | Easy (softwood) |
| MDF | Perfect straight lines, painted looks | $2.00-$3.50/ft | Moderate (no sanding needed) |
| Poplar | Stained finishes, minimal warping | $2.50-$4.00/ft | Moderate (harder than pine) |
| Reclaimed wood | Rustic character, eco-friendly projects | $3.00-$6.00/ft | Challenging (requires cleaning) |
Avoid plywood edges—they separate over time. For rental-friendly versions, use 3/4" thick boards; thinner materials warp easily on large walls.
Installation Process: Avoiding Costly Mistakes
Most DIYers rush layout, causing crooked lines. Follow this sequence:
- Find true vertical: Use a laser level—not the ceiling or baseboard—as reference points shift
- Mark anchor points: Every 16" for battens over 6' tall to prevent bowing
- Pre-finish materials: Paint/stain before installation for even coverage in corners
- Install top-to-bottom: Start with horizontal top rail, then vertical battens
- Hide fasteners: Use 18-gauge brad nails with countersinking for paint-grade work

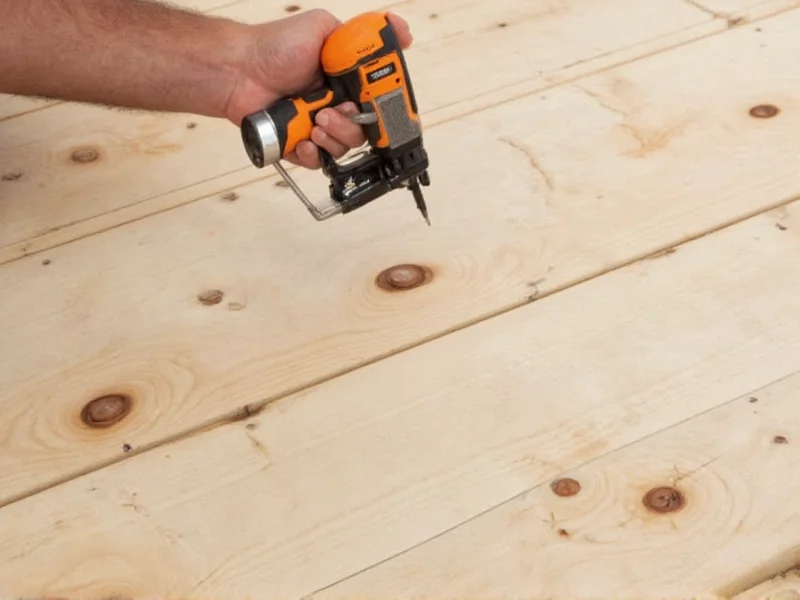

Nail at 45-degree angles into wall studs for secure hold without visible hardware
Troubleshooting Common Problems
Even experienced DIYers encounter these issues:
- Gaps at corners: Miter cuts rarely align perfectly. Use caulkable wood filler instead of forcing joints
- Warping boards: Acclimate wood 48 hours in the room before installation
- Uneven spacing: Create a spacing jig from scrap wood cut to your gap width
- Paint bleed: Apply masking tape, then seal edges with clear shellac before painting
Design Variations for Different Styles
Move beyond basic white with these approaches:
- Modern minimalist: 1x4 battens at 12" intervals with matte black finish
- Farmhouse charm: Mixed widths (1x2 and 1x6) with "chippy" white paint
- Textured accent: Add rope or leather strips in the gaps for dimension
- Rental solution: Use peel-and-stick molding kits for temporary installations
Budget Hack: Buy "rough cut" lumber and sand it yourself—saves 30% versus pre-sanded boards without sacrificing quality.
Same technique, different applications: full wall, partial accent, and ceiling treatment
When to Call a Professional
DIY works for standard walls, but hire help if:
- Your walls have significant unevenness (>1/4" variation)
- You're working with plaster (nailing risks cracking)
- Installing on stairwell walls (requires precise angle calculations)
- Using heavy materials like reclaimed barn wood
Frequently Asked Questions
How much does a DIY board and batten wall cost?
For a 10x10 foot room, expect $100-$300 using pine boards and basic tools. Costs rise with premium materials like poplar or pre-primed MDF. Factor in paint ($30-$50) and tools if purchasing new.
Can you install board and batten on textured walls?
Yes, but with preparation. Use a level to find high points, then install furring strips to create a flat mounting surface. This adds 2-3 hours but prevents wavy lines. Avoid direct installation on heavy texture—it creates uneven shadows.
What's the ideal spacing between battens?
Standard spacing is 3-6 inches for visual balance. Narrower gaps (2-3") work in small rooms; wider (8-12") suit large spaces. Maintain consistency—varying widths only works in rustic designs. Always measure from the room's center outward for symmetrical results.
How do you clean and maintain board and batten walls?
Dust regularly with a microfiber cloth. For stains, use mild soap and water—avoid harsh cleaners that damage finishes. Repaint every 3-5 years as needed. Check nail holes annually; touch up with matching caulk if gaps appear.
Does board and batten make a room look bigger or smaller?
Vertically installed board and batten creates height illusion, making ceilings appear taller. Horizontal installation (less common) widens the space visually. Dark colors on battens recede, enhancing the effect; light colors on gaps create contrast that emphasizes dimension.
