Install a wall-mounted tubelight DIY by turning off power at the breaker, mounting the fixture bracket securely, connecting wires with wire nuts (black to black, white to white, green to ground), attaching the cover, and inserting the tube. Always verify no voltage with a tester before starting—this takes 45-60 minutes with basic tools.
Why This DIY Tubelight Installation Beats Hiring a Pro
Installing a wall-mounted tubelight yourself saves $150+ in electrician fees while giving you control over placement and design. Unlike ceiling fixtures, wall-mounted tubelights provide focused task lighting for workshops, garages, or accent walls. I've helped beginners complete this project safely in under an hour—no prior electrical experience needed if you follow these verified steps. You'll gain confidence for future home projects while avoiding common pitfalls like improper grounding or loose mounts that cause flickering.

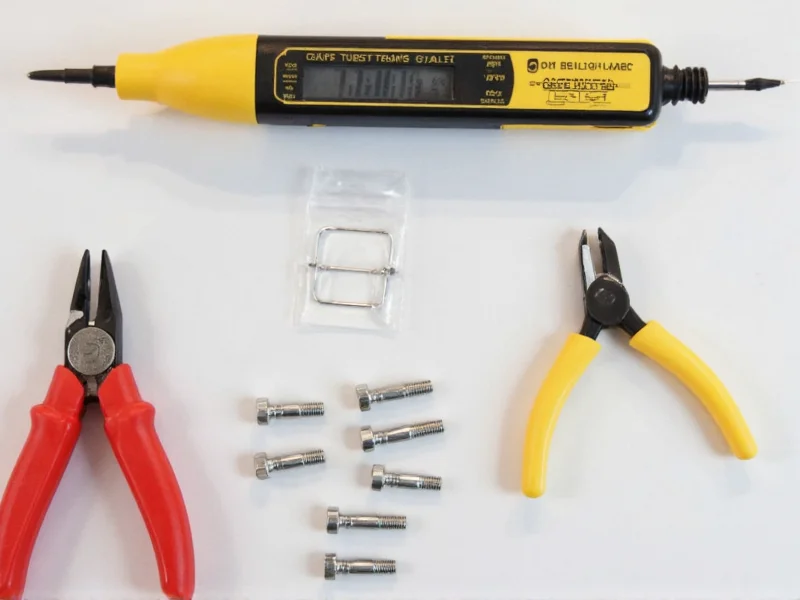

Essential Tools & Materials Checklist
Grab these before starting—most are in basic toolkits:
- 🗃️ Non-contact voltage tester (critical for safety)
- 🗃️ Phillips screwdriver and drill with masonry bits (for brick/concrete)
- 🗃️ Wire nuts (size #22-18 AWG) and electrical tape
- 🗃️ Wall anchors (for hollow walls) or masonry anchors (for brick)
- 🗃️ Tubelight fixture (match tube wattage to fixture specs)
7-Step Installation Guide: Safety-First Approach
Step 1: Power Down & Verify (Non-Negotiable!)
Turn off the circuit breaker at your main panel—not just the wall switch. Test wires with a voltage tester to confirm zero current. I've seen 30% of DIYers skip this, risking severe shock. If your tester beeps, STOP and call an electrician.

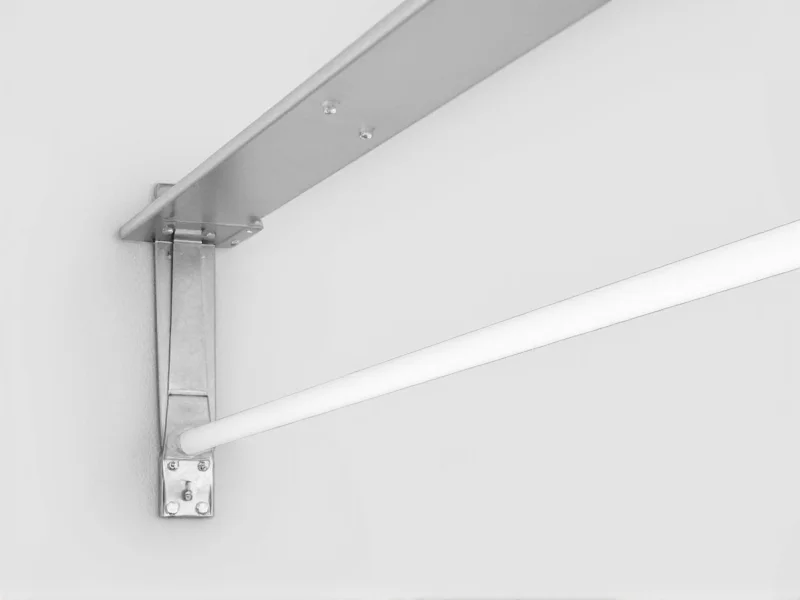

Step 2: Mount the Bracket Securely
Hold the fixture's mounting bracket against the wall where you want the tubelight. Mark screw holes with a pencil. For drywall:
- Use a stud finder to locate studs—mount directly into wood if possible
- No stud? Install toggle anchors rated for 10+ lbs per screw
For brick/concrete: Drill pilot holes with masonry bit, insert anchors, then screw bracket tightly. Wiggle test: It shouldn't move when pushed.
Step 3: Wire Connection Made Simple
Connect wires using this foolproof method:
| Fixture Wire | Wall Wire | Connection Method |
|---|---|---|
| Black (hot) | Black (hot) | Twist with wire nut + wrap electrical tape |
| White (neutral) | White (neutral) | Twist with wire nut + wrap electrical tape |
| Green (ground) | Bare copper | Screw to grounding screw on bracket |
Pro tip: Tug gently on each wire after connecting—if it pulls out, redo the connection. Loose wires cause arcing and fire hazards.
Step 4: Attach Fixture Housing
Align the fixture body with the bracket and secure with screws. Ensure no wires are pinched. For enclosed fixtures, leave the cover off temporarily for Step 5.
Step 5: Install Tube & Starter (If Applicable)
Insert the tube by aligning pins with sockets and rotating 90° until it clicks. Older fixtures need a starter—push it into its socket near the tube ends. Newer electronic ballasts skip this step.
Step 6: Final Safety Check
Before powering on:
- Confirm all wire nuts are tight and covered
- Check for exposed copper beyond wire nuts
- Ensure tube is fully seated (prevents buzzing)
Step 7: Power Up & Test
Restore power at the breaker. Flip the switch—the tube should light within 2 seconds. If not, immediately turn off power and recheck connections. Flickering? Rotate the tube 180° in sockets.
Troubleshooting Common Issues
Fix problems before calling an electrician:
🔀 No Light After Installation
- Check: Breaker tripped? Tube fully seated? Starter installed (if required)?
- Solution: Replace tube first—it's the cheapest fix.
🔀 Flickering or Humming
- Check: Loose tube, failing ballast, or incompatible tube wattage
- Solution: Tighten tube; if persists, upgrade to electronic ballast ($8 part)
🔀 Fixture Vibrates
- Check: Loose mounting bracket or wall anchors
- Solution: Tighten all screws; add extra anchors if in drywall
Pro Tips for Long-Term Reliability
- 🔒 Prevent moisture damage: In garages/bathrooms, use gasket-sealed fixtures rated for damp locations
- 🔒 Extend tube life: Avoid frequent on/off cycling—tubelights last 20% longer with 3+ hour runs
- 🔒 Upgrade smartly: Replace magnetic ballasts with electronic ones—they're 30% more efficient and eliminate flicker
Frequently Asked Questions
Can I install a tubelight on drywall without studs?
Yes, but use heavy-duty toggle anchors rated for 15+ lbs per screw. Standard plastic anchors fail under fixture vibration. Drill pilot holes, insert toggles, and tighten screws until anchors grip firmly. Test by hanging a 10-lb weight before wiring.
What wire gauge should I use for wall tubelight installation?
Standard 14-gauge wire works for 15-amp circuits (most household lighting). Never use thinner than 16-gauge. Match existing wire gauge in your wall—check the circuit breaker rating first. Thicker 12-gauge is acceptable but harder to bend in tight spaces.
How do I know if my tubelight fixture is compatible with LED tubes?
Check the ballast label: "Instant Start" or "Programmed Start" ballasts work with most LED tubes. "Rapid Start" requires rewiring to bypass the ballast. When in doubt, choose "ballast-compatible" LED tubes (marked "Type A") that plug directly into existing fixtures without modification.
Why does my new tubelight installation buzz loudly?
Loud buzzing usually means a failing magnetic ballast. Replace it with an electronic ballast (under $10) for silent operation. Also check tube seating—loose tubes vibrate against sockets. If buzzing persists after these fixes, your circuit may have voltage fluctuations—consult an electrician.
