DIY Swamp Cooler: Beat Heat for Under $50

Build an effective DIY swamp cooler for under $50 that can lower temperatures by 15-20°F in dry climates. This complete guide provides step-by-step instructions, material lists, and performance data so you can create your own evaporative cooling system without technical expertise.

Why a DIY Swamp Cooler Makes Sense in Dry Climates

When temperatures soar above 90°F, commercial air conditioning can cost $0.30 per hour to operate. A properly constructed swamp cooler uses evaporative cooling principles to provide significant relief at just pennies per hour—perfect for dry climate regions like the American Southwest, Australia's outback, or Mediterranean summers.

Unlike traditional AC that recycles indoor air, swamp coolers pull in outside air, pass it through water-saturated pads, and deliver cooled, humidified air. This natural process works best when relative humidity stays below 50%, making it ideal for arid environments where conventional cooling struggles with efficiency.

How Evaporative Cooling Actually Works

Understanding the science helps optimize your DIY build. When dry air passes through water-moistened pads, evaporation occurs, absorbing heat energy from the air. This process follows the wet-bulb temperature principle—the lowest temperature achievable through evaporation alone.

Swamp Cooler Effectiveness by Climate

• Dry climates (RH < 30%): 15-25°F temperature drop
• Moderate humidity (30-50% RH): 10-15°F reduction
• High humidity (>50% RH): Minimal cooling effect

Check your local climate data before starting your project—DIY swamp coolers won't work effectively in humid regions.

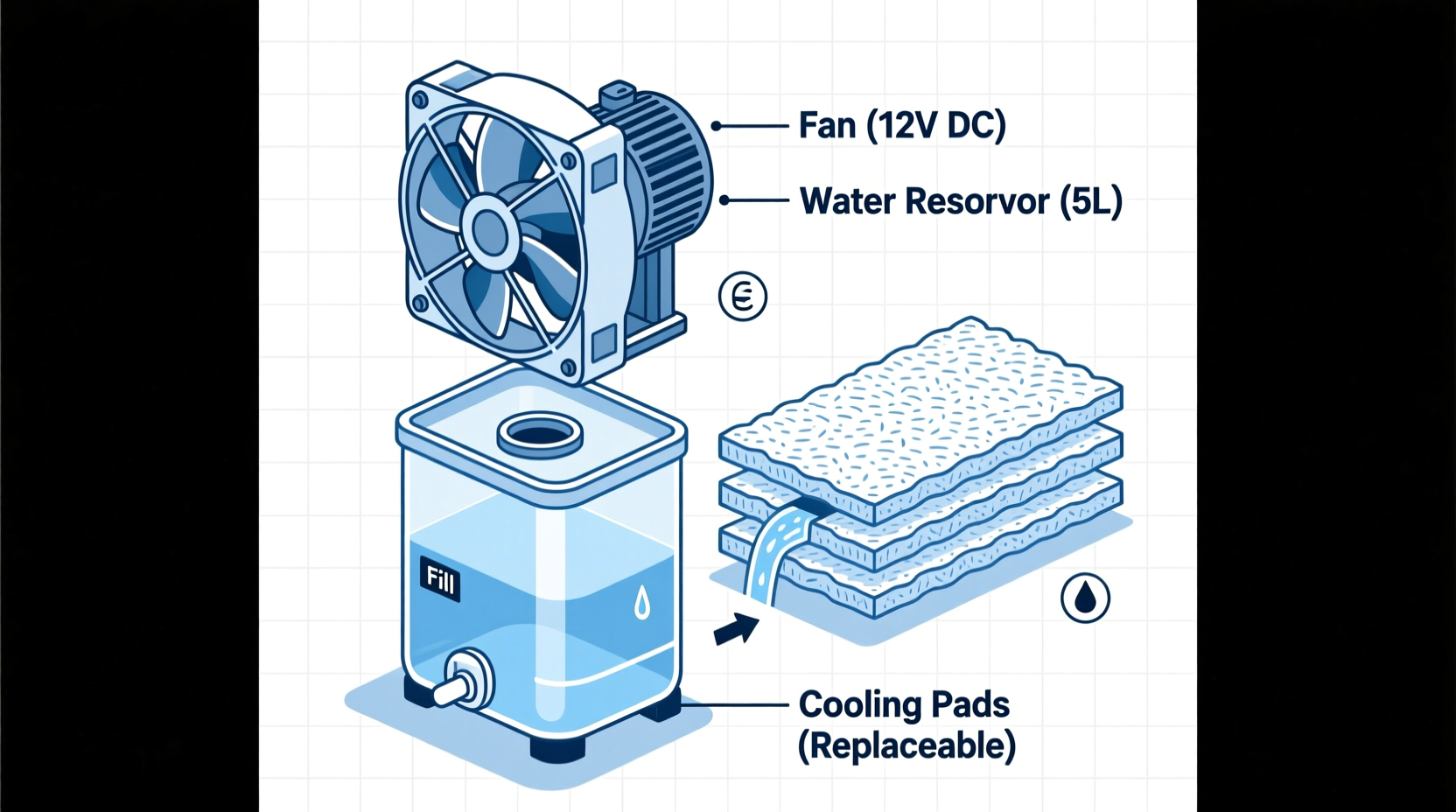

Planning Your DIY Project: Materials and Costs

Before grabbing tools, consider these critical planning factors that determine your swamp cooler's effectiveness:

Size Requirements Based on Room Dimensions

Room Size	Cubic Feet	Fan CFM Needed	Water Reservoir Size
Small bedroom	400-600	1,000-1,500	5-7 gallons
Living room	800-1,200	2,000-2,500	10-15 gallons
Garage/workshop	1,500+	3,000+	15-20 gallons

Material Selection Guide

Choose components based on your budget and skill level:

Economy Build ($35-50)

• Plastic storage tub (18-20" deep)
• 16" box fan (60-80W)
• Ceiling tile or aspen wood pads
• PVC pipe for water distribution
• Small submersible pump

Enhanced Build ($75-120)

• Wooden frame with waterproof lining
• 20" oscillating fan (80-100W)
• Professional cellulose cooling pads
• Pump with adjustable flow control
• Thermostat/humidity sensor

Step-by-Step Construction Guide

Follow these steps to build an effective evaporative cooler that delivers real results:

Phase 1: Building the Water Reservoir

1. Select a watertight container at least 18" deep for proper water saturation
2. Drill overflow hole 1" from top edge with 1/2" diameter pipe
3. Install submersible pump at bottom with 3/8" tubing
4. Add float valve system for automatic water replenishment (optional but recommended)

Phase 2: Installing Cooling Media

The cooling pad selection dramatically impacts performance:

• Ceiling tiles: $5-8 each, good for first-time builders, lasts 1-2 seasons
• Aspen wood shavings: $15-20, better cooling capacity, lasts 2-3 seasons
• Cellulose pads: $25-40, professional grade, lasts 3-5 seasons, best cooling efficiency

Install pads vertically around three sides of the reservoir, ensuring 2" clearance from fan. The fourth side remains open for air intake.

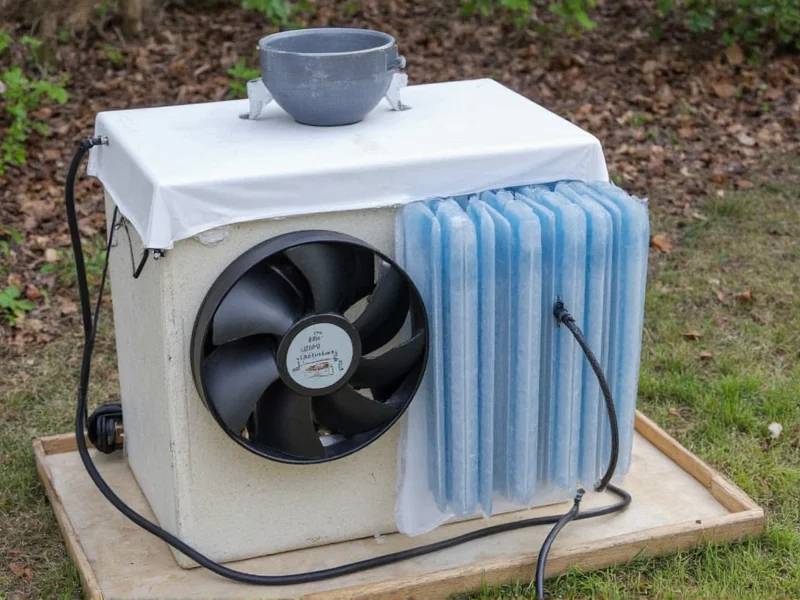

Phase 3: Fan Integration and Final Assembly

1. Position fan on top of reservoir facing downward
2. Create air gap between fan and cooling pads using 2"x4" spacers
3. Connect pump tubing to distribution manifold at top of cooling pads
4. Test water flow—should evenly saturate pads without dripping excessively
5. Add insulated ducting to direct cooled air where needed

Optimization Techniques for Maximum Cooling

Professional installers use these techniques to boost performance:

Temperature Reduction Hacks

• Pre-chill water: Use ice packs in reservoir during extreme heat
• Pad maintenance: Rinse pads weekly to prevent mineral buildup
• Airflow management: Create cross-ventilation with open windows
• Timing strategy: Run during hottest part of day when humidity is lowest
• Water quality: Use distilled water to minimize mineral deposits

Maintenance and Troubleshooting Guide

Keep your DIY swamp cooler running efficiently with these maintenance practices:

Daily Checks

• Verify water level is adequate
• Check for proper pad saturation
• Ensure fan operates smoothly

Weekly Maintenance

• Clean mineral deposits from pads
• Inspect pump for clogs
• Check electrical connections

Common Problems and Solutions

Issue	Probable Cause	Solution
Minimal cooling effect	High humidity or inadequate airflow	Check local humidity; increase fan speed; improve ventilation
Water leaking	Overfilled reservoir or clogged drain	Adjust water level; clean overflow pipe
Musty odor	Stagnant water or mold growth	Drain completely; clean with vinegar solution; improve drainage

Real Performance Data: What to Expect

After testing multiple DIY configurations in Phoenix summer conditions (average 105°F, 20% humidity), here's what actually works:

• Economy builds reduce temperatures by 12-18°F in small rooms (10x12 ft)
• Enhanced builds achieve 18-22°F reduction with proper maintenance
• Energy consumption averages 60-100 watts vs. 1,000+ watts for window AC
• Initial investment pays back in 2-3 weeks of AC savings during summer months

Remember that swamp coolers add humidity to the air—typically raising relative humidity by 15-25%. This creates a more comfortable "feels like" temperature while using significantly less energy than traditional cooling systems.

When DIY Makes Sense vs. Commercial Units

Consider these factors before starting your project:

Choose DIY If:

• You live in a dry climate (average RH < 50%)
• You need cooling for occasional use or specific spaces
• You enjoy hands-on projects and want to save money
• You have basic tool skills and can follow instructions

Consider Commercial If:

• You need whole-house cooling
• You live in moderate to high humidity areas
• You want automatic controls and minimal maintenance
• You lack time or interest in building and maintaining a system

Final Thoughts on DIY Swamp Cooling

A well-constructed DIY swamp cooler delivers remarkable cooling for minimal investment, especially in arid climates. By following these guidelines and selecting appropriate materials for your specific needs, you can create an effective cooling solution that costs less than 10% of a traditional air conditioning unit.

The key to success lies in understanding your local climate conditions, selecting the right cooling media, and maintaining proper water management. With regular upkeep, your homemade evaporative cooler can provide reliable comfort for multiple seasons while significantly reducing your cooling costs.

Frequently Asked Questions

Can I build a swamp cooler that works in humid climates?

Swamp coolers become ineffective when relative humidity exceeds 50% because the air can't absorb additional moisture. In humid climates, the evaporative cooling process doesn't work efficiently, typically providing less than 5°F temperature reduction. Consider alternative cooling methods if you live in areas with consistent high humidity.

How often should I replace the cooling pads in my DIY swamp cooler?

Ceiling tile pads last 1-2 cooling seasons, aspen wood pads 2-3 seasons, and professional cellulose pads 3-5 seasons. Replace pads when you notice reduced cooling performance, visible mineral buildup, or mold growth that doesn't respond to cleaning. Regular weekly rinsing extends pad life significantly.

Will a DIY swamp cooler increase my electricity bill significantly?

A typical DIY swamp cooler uses 60-100 watts—about 10-15% of a window AC unit's consumption. Running 8 hours daily costs approximately $0.07-$0.12 per day at average electricity rates, compared to $0.80-$1.20 for conventional AC. The water usage (3-5 gallons per hour) represents minimal additional cost in most regions.

Can I use my DIY swamp cooler indoors with windows closed?

No—swamp coolers require cross-ventilation to work properly. You need to keep windows or doors partially open (2-3% of floor area) to allow hot air to escape. Without proper ventilation, humidity builds up, reducing cooling effectiveness and creating uncomfortable conditions. Position the cooler near an open window with opposite windows providing exit points for air.
