DIY Rain Barrel: Build in 3 Hours for Under $50

You can build a functional rainwater barrel for under $50 using a food-grade 55-gallon drum, basic tools, and 3 hours of work. This guide delivers a complete, legally compliant system that saves 1,300+ gallons annually while preventing mosquito breeding and overflow damage.

Why Every Home Needs a DIY Rain Barrel

Rainwater harvesting isn't just eco-friendly—it's practical economics. Municipal water costs average $1.50 per 1,000 gallons, while rainwater is free and ideal for plants (no chlorine or minerals). A single 55-gallon barrel captures runoff from just 0.3 inches of rain on a 1,000 sq ft roof. Over a typical rainy season, this translates to 1,300+ gallons saved—enough to water gardens through summer droughts.

Critical Safety & Legal Requirements

Skipping these steps risks health hazards and fines. Verify these before starting:

• Container safety: Only use food-grade HDPE (high-density polyethylene) drums marked with recycling code #2. Never repurpose chemical containers—even thorough cleaning leaves toxic residues.
• Local regulations: 17 states restrict rainwater collection. Check your county's stormwater management office website first.
• Mosquito prevention: All openings must have 18-mesh screening. Add 2 tablespoons of vegetable oil monthly to suffocate larvae without harming plants.

Materials Cost Breakdown

Item	Why It Matters	Cost
55-gallon food-grade drum	Prevents chemical leaching; UV-stabilized	$25 (reuse from bakeries)
1.5" brass spigot	Won't corrode like plastic; handles pressure	$8
18-mesh stainless steel screen	Blocks mosquitoes; lasts 5+ years	$6
Roofing sealant	Creates watertight spigot seal	$5
Total		$44

Step-by-Step Assembly Guide

Phase 1: Barrel Preparation (20 mins)

1. Clean drum with 1:10 vinegar-water solution to remove residues
2. Mark spigot location 3" from bottom using tape measure
3. Drill 7/8" pilot hole, then use hole saw for final cut

Phase 2: Spigot Installation (15 mins)

Apply roofing sealant inside and outside the hole. Screw spigot clockwise until snug—do not overtighten. Wipe excess sealant immediately. Let cure 24 hours before filling.

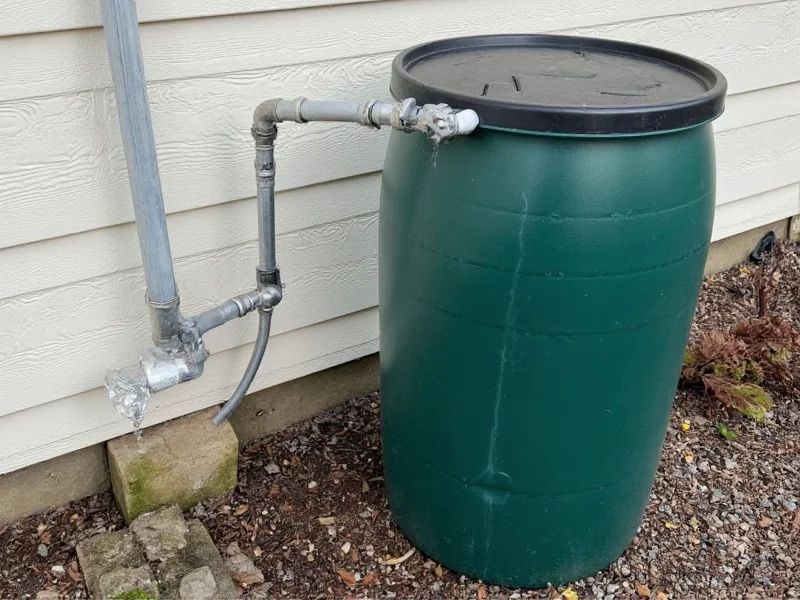

Phase 3: Overflow & Screening (25 mins)

• Cut 2" hole 2" below barrel top for overflow pipe
• Attach flexible downspout extension to direct overflow away from foundations
• Secure screen over top opening with stainless steel band clamp

Maintenance Checklist

Prevent common failures with this quarterly routine:

Spring Setup

• Inspect seals for cracks
• Flush sediment through spigot
• Reapply screen mesh

Fall Winterization

• Drain completely
• Remove spigot for indoor storage
• Store barrel upside down

Troubleshooting Guide

Issue	Root Cause	Solution
Slow drainage	Clogged spigot or low pressure	Elevate barrel 18" on cinder blocks
Algae growth	Light exposure through translucent barrel	Paint exterior with matte black paint
Overflowing	Inadequate downspout redirection	Install 45-degree elbow on overflow pipe

Maximizing Your System's Efficiency

Most DIYers miss these optimization opportunities:

• First-flush diverter: Install a $15 PVC pipe diverter to discard initial roof runoff containing bird droppings and debris
• Barrel linking: Connect multiple barrels with 1" flexible tubing for 110+ gallon capacity during heavy rains
• Water testing: Use aquarium pH strips monthly—ideal range is 6.5-7.5 for most plants

Frequently Asked Questions

Can I use a trash can instead of a food-grade drum?

No—standard trash cans contain BPA and phthalates that leach into water. Only use containers labeled "FDA-approved" or "food-grade" with recycling code #2.

How do I prevent freezing damage in winter?

Completely drain the barrel and store spigot indoors. Never leave water inside—expansion cracks plastic. Insulate pipes with foam sleeves if keeping system active.

Is rainwater safe for vegetable gardens?

Yes for root crops (carrots, potatoes). For leafy greens, use a 3-month storage period to kill pathogens naturally. Never use untreated rainwater on edible plants within 30 days of harvest.

Why does my barrel smell musty?

Stagnant water breeds anaerobic bacteria. Add 1 cup of hydrogen peroxide monthly. Ensure screen mesh is intact to block organic debris.
