How to Craft a Piston: Precision Machining Guide

Crafting a functional piston requires precision machining of aluminum or steel using a lathe, milling machine, and specialized tools. Follow these steps: design specifications, material selection, rough turning, precision boring, ring groove cutting, surface finishing, and quality testing for proper fit and function.

Understanding Piston Mechanics Before You Begin

Before crafting your piston, understand its critical role in converting combustion energy into mechanical motion. A well-made piston maintains proper clearance (typically 0.002-0.004 inches), withstands extreme temperatures (up to 600°F), and creates an effective seal with cylinder walls through precisely cut ring grooves.

Essential Tools and Materials Checklist

Gather these components before starting your piston crafting project:

Category	Required Items	Alternative Options
Machining Equipment	Lathe, milling machine, drill press	Manual lathe for simpler projects
Measuring Tools	Digital calipers, micrometers, dial indicators	Vernier calipers for basic measurements
Materials	6061-T6 aluminum, cast iron rings	Forged steel for high-performance applications
Safety Gear	Safety glasses, hearing protection, respirator	Cut-resistant gloves for handling sharp edges

Critical Safety Considerations for Piston Crafting

Machining pistons involves significant hazards that require proper precautions:

• Chip management - Aluminum produces long, hot chips that can cause severe cuts
• Rotating machinery - Never wear loose clothing near lathes or mills
• Respiratory protection - Metal dust requires N95 or better filtration
• Coolant handling - Use proper disposal methods for machining fluids
• Fire prevention - Aluminum chips are highly flammable when dry

Step-by-Step Piston Crafting Process

Phase 1: Design and Preparation

1. Obtain precise engine specifications including bore size, stroke length, and compression ratio
2. Create detailed CAD drawings with critical dimensions (head thickness, skirt profile, pin bore)
3. Select appropriate material based on application (aluminum for standard use, steel for racing)
4. Calculate thermal expansion allowances for proper running clearance

Phase 2: Precision Machining Sequence

1. Mount material in lathe and perform rough turning to establish basic shape
2. Cut piston head to specified crown height and contour
3. Machine skirt profile with proper taper (typically 0.003-0.005 inches)
4. Create pin bore with precise alignment (critical for proper wrist pin function)
5. Cut ring grooves using specialized tooling (standard widths: 1/16", 1/16", 3/32")
6. Perform final finishing with fine-grit sanding for optimal ring seating

Phase 3: Quality Verification

Before installation, verify your handcrafted piston meets these critical standards:

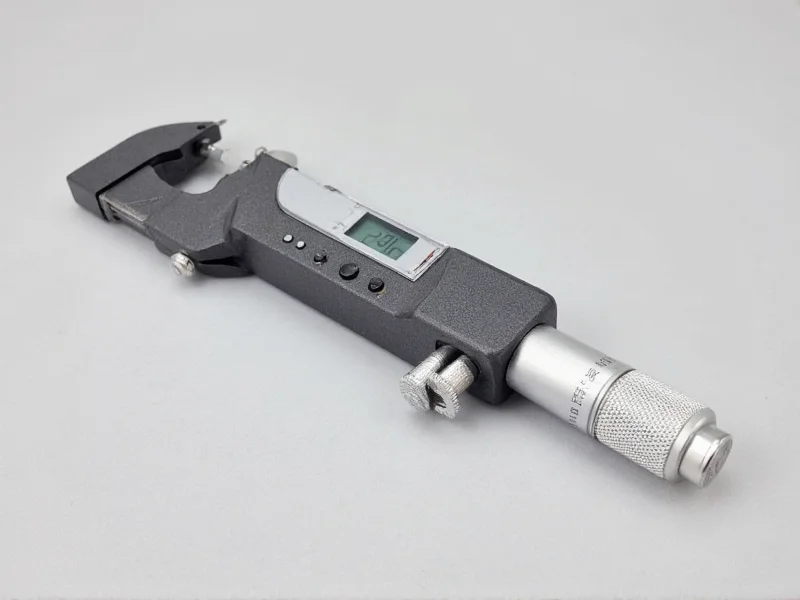

• Measure diameter at multiple points to ensure consistent roundness

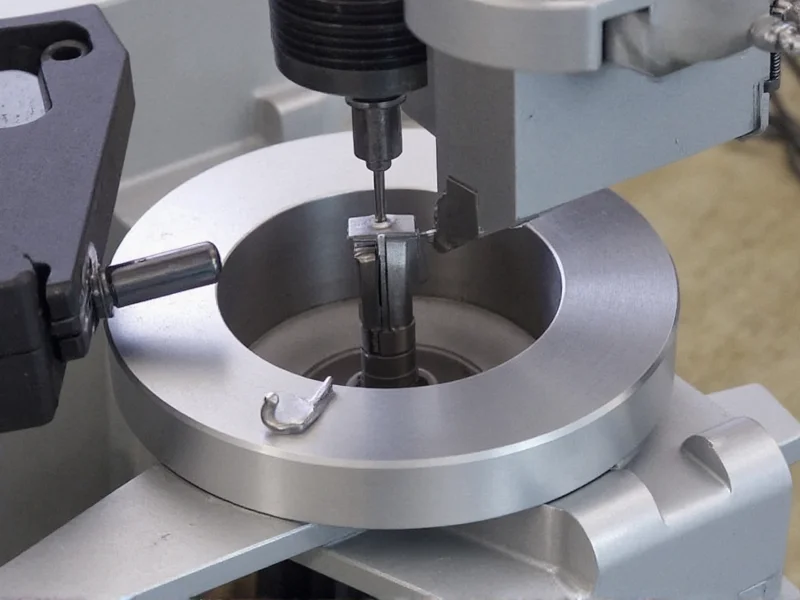

• Check ring groove dimensions with feeler gauges (proper clearance: 0.002-0.004")
• Verify pin bore alignment using dial indicator
• Test fit in cylinder with plastigauge to confirm proper clearance
• Balance piston weight against engine specifications

Troubleshooting Common Piston Crafting Challenges

Even experienced machinists encounter these issues when crafting pistons:

Problem: Excessive skirt wear during testing

Solution: Adjust skirt profile taper and verify proper clearance. Consider molybdenum coating for improved lubrication. Check for alignment issues in the connecting rod.

Problem: Ring land damage during installation

Solution: Use proper ring compressor tool and ensure ring ends don't catch on ring grooves. Verify groove dimensions match ring specifications exactly.

Problem: Inconsistent bore measurements

Solution: Check lathe alignment and tool sharpness. Allow material to cool between machining passes to prevent thermal expansion errors.

Advanced Applications and Next Steps

Once you've mastered basic piston crafting, consider these advanced techniques:

• Implement thermal barrier coatings for improved heat management
• Experiment with different skirt profiles for specific engine applications
• Learn precision balancing techniques for high-RPM applications
• Explore custom piston crown designs for optimized combustion
• Master the art of creating custom ring packs for specialized applications

For model engine enthusiasts, consider scaling down techniques using brass or bronze materials with appropriate tooling adjustments. Remember that miniature pistons require even greater precision due to smaller tolerances.
