Yes, you can build a reliable variable lab bench power supply from a standard ATX PC power supply unit (PSU) by adding voltage regulation circuitry to the 12V rail, incorporating safety features, and properly modifying the enclosure. This DIY project typically costs $25-$45 and delivers 0-12V adjustable output with 5-10A current capacity, making it ideal for electronics prototyping while repurposing e-waste.
Why Build a Variable Bench Supply from a PC PSU?
Commercial lab power supplies often cost $100+, while functional ATX PSUs can be found for free or under $10. This DIY solution transforms e-waste into a versatile tool with these advantages:
| Feature | DIY PC PSU Conversion | Entry-Level Commercial Supply |
|---|---|---|
| Cost | $25-$45 | $80-$150 |
| Max Current | 5-10A (12V rail) | 2-5A |
| Multiple Outputs | Fixed +5V, +3.3V, -12V included | Single variable output |
| E-Waste Reduction | Repurposes existing hardware | New manufacturing required |
Critical Safety Considerations First
PC power supplies contain lethal voltages even when unplugged. Before starting your DIY variable lab bench power supply project:
- Discharge capacitors using a 10kΩ resistor across main terminals for 30 seconds
- Never work alone when testing under load
- Use insulated tools and wear safety glasses
- Keep one hand behind your back when probing live circuits
- Install an emergency power cutoff switch
Required Components Breakdown
Here's what you'll need for a professional-quality variable lab bench power supply conversion:
Core Components
- ATX PSU (500W+ recommended)
- LM317 voltage regulator circuit (or buck converter module)
- 10kΩ potentiometer for voltage adjustment
- Digital voltmeter/ammeter module
- Binding posts (red/black for outputs)
- Heat sink for regulator (mandatory!)
Essential Tools
- Multimeter (for calibration)
- Soldering iron with temperature control
- Drill with step bits for enclosure work
- Wire strippers and crimpers
- Heat shrink tubing assortment
Step-by-Step Conversion Process
Phase 1: PSU Preparation
- Remove all internal wiring except the 20/24-pin motherboard connector
- Solder a 10Ω 10W resistor between +5V (red) and ground (black) for minimum load
- Connect PS_ON# (green wire) to ground to enable power
- Test basic functionality before adding variable circuitry
Phase 2: Adding Variable Voltage Circuit
The critical modification for your DIY variable lab bench power supply involves tapping the 12V rail:
- Connect LM317 input to 12V rail (yellow wire)
- Install potentiometer between ADJ and OUTPUT pins
- Add 10μF capacitor at input and 1μF at output for stability
- Mount regulator on adequate heat sink with thermal paste
Phase 3: Professional Finishing Touches
- Install digital meter to monitor voltage and current
- Add banana jacks with proper labeling
- Include power indicator LED
- Mount components securely using standoffs
- Add ventilation holes if needed for heat dissipation

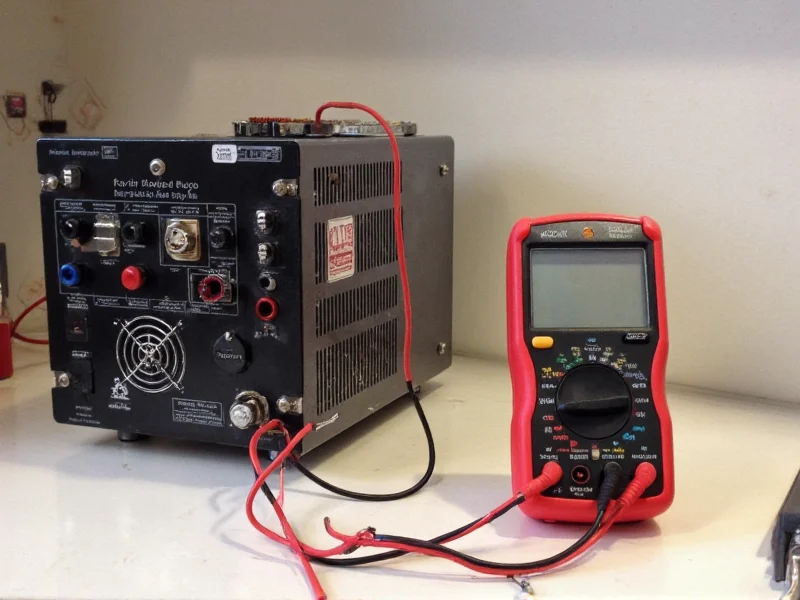

Calibration and Testing Protocol
Never skip these validation steps for your DIY variable lab power supply:
- Verify no-load output matches expected range (1.25V-11.75V)
- Test under 1A, 3A, and 5A loads using power resistors
- Check voltage stability during load changes
- Confirm ripple remains below 100mV
- Validate current limiting functionality
Advanced Modifications Worth Considering
Once your basic DIY variable lab bench power supply works reliably, consider these professional upgrades:
- Add current limiting using LM334 circuit
- Implement dual independent outputs
- Install USB-C PD module for 5V/9V/12V/15V/20V
- Add microcontroller for digital control
- Include short-circuit protection with resettable fuse
Troubleshooting Common Issues
When building your PC PSU conversion project, these problems frequently occur:
Voltage Instability
Cause: Insufficient input capacitance
Solution: Add 470μF-1000μF capacitor at regulator input
Overheating Regulator
Cause: Inadequate heat sinking
Solution: Use larger heat sink with thermal paste and consider forced air cooling
PSU Shuts Down Under Load
Cause: Minimum load requirement not met
Solution: Increase dummy load resistor wattage
Final Thoughts on Your DIY Power Supply Project
A properly built variable lab bench power supply from a PC PSU delivers exceptional value for electronics workbenches. The key to success lies in respecting safety protocols, using quality components for the voltage regulation circuit, and thorough testing before regular use. This sustainable approach to electronics prototyping not only saves money but also reduces e-waste by repurposing functional hardware that would otherwise be discarded. Remember that while commercial supplies offer convenience, your custom DIY variable lab bench power supply can be tailored precisely to your workshop needs with superior current capacity at a fraction of the cost.
Frequently Asked Questions
Can I get negative voltage from a PC PSU for my variable bench supply?
Yes, the -12V rail provides approximately 0.5A of negative voltage. For higher current negative outputs, you'll need to add a charge pump circuit or isolated DC-DC converter to your DIY variable lab bench power supply.
How precise is the voltage adjustment on a DIY PC PSU conversion?
With quality components and proper calibration, you can achieve ±0.1V accuracy across the 1.25-12V range. Using a 10-turn potentiometer instead of standard single-turn improves fine adjustment capability for your variable lab bench power supply.
What's the maximum current I can safely draw from the variable output?
This depends on your regulator circuit. Standard LM317 configurations support up to 1.5A. For higher currents (5-10A), use multiple regulators in parallel or a buck converter module designed for your DIY variable lab bench power supply project.
Can I use this DIY power supply for sensitive analog circuits?
With proper filtering (LC filters and additional capacitance), a well-built PC PSU conversion works for most analog circuits. For ultra-sensitive applications, add a linear post-regulator stage to reduce switching noise in your variable lab bench power supply.
