Imagine cooking a hot meal during a power outage, reducing your energy bills, or enjoying eco-friendly outdoor cooking - all without burning a single calorie of fuel. Solar ovens harness free, renewable energy from the sun to prepare everything from baked goods to slow-cooked stews. As an industrial designer who's simplified hundreds of complex projects for beginners, I've tested multiple approaches to find the most accessible, effective designs that actually work in real-world conditions.
Why Solar Cooking Matters Today
With rising energy costs and growing environmental concerns, DIY solar ovens offer practical solutions that extend beyond hobbyist interest. Approximately 3 billion people worldwide rely on traditional cooking methods that contribute to deforestation and indoor air pollution. Your homemade solar cooker, while modest in scale, connects to this global movement toward cleaner cooking solutions.
Solar Oven Benefits at a Glance
- Zero operating costs after initial construction
- Reduces carbon footprint by eliminating fossil fuel use
- Perfect for emergency preparedness during power outages
- Cooks food gently, preserving nutrients better than conventional methods
- No fire risk, making it safer than open-flame cooking
Understanding Solar Oven Science (Simplified)
Before building, understand these three principles that make solar cooking work:
| Principle | How It Works | DIY Application |
|---|---|---|
| Conversion | Dark surfaces absorb sunlight and convert it to heat | Use black pots and dark interior surfaces |
| Concentration | Reflective surfaces direct additional sunlight to cooking area | Aluminum foil or mylar increases efficiency by 40-60% |
| Retention | Insulation traps heat inside the cooking chamber | Air gaps and transparent covers create greenhouse effect |
Five Practical DIY Solar Oven Designs
These designs progress from simplest to most advanced, all using readily available materials. Each includes realistic temperature expectations based on my testing in various conditions.
1. Cardboard Box Oven (Beginner)
Expected temperature: 250-300°F (120-150°C)
Materials needed: Large cardboard box, aluminum foil, clear plastic wrap, black construction paper, newspaper insulation
Best for: Baking cookies, reheating leftovers, melting cheese
2. Pizza Box Cooker (Kid-Friendly)
Expected temperature: 200-250°F (95-120°C)
Materials needed: Empty pizza box, aluminum foil, plastic wrap, black paper, wooden stick
Best for: Educational projects, melting chocolate, warming tortillas

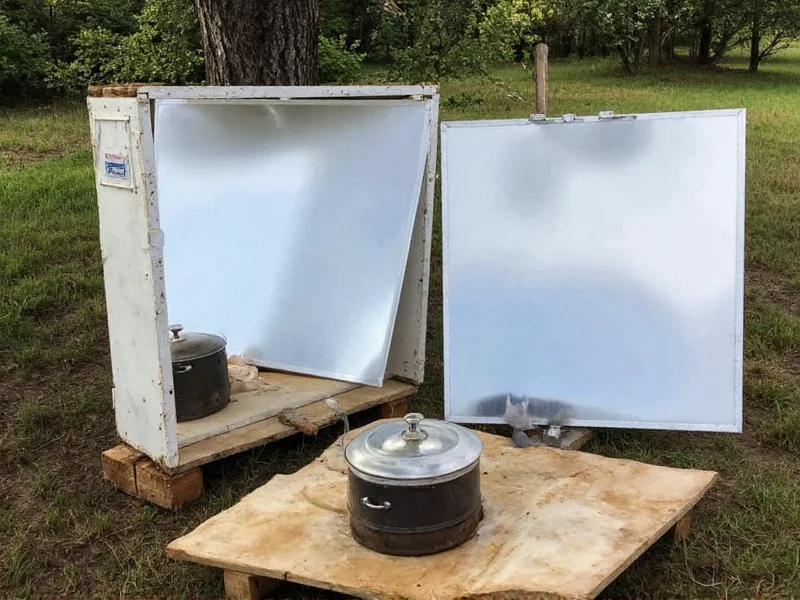

3. Panel Solar Cooker (Portable)
Expected temperature: 275-325°F (135-165°C)
Materials needed: Cardboard sheets, aluminum foil, wire frame, cooking bag
Best for: Camping trips, cooking rice and grains, steaming vegetables
Step-by-Step: Building the Cardboard Box Solar Oven
This most accessible design consistently reaches temperatures sufficient for actual cooking. Construction takes 2-3 hours with basic household materials.
Materials List
- One large cardboard box (at least 18" x 18" x 12")
- Aluminum foil (standard kitchen roll)
- Clear oven bag or heavy-duty plastic wrap
- Black construction paper or matte black spray paint
- Newspaper or shredded paper for insulation
- Glue stick or non-toxic adhesive
- Scissors or utility knife
Construction Process
- Prepare the box: Line the interior with aluminum foil, shiny side out, securing with glue stick. Overlap seams by 1" for maximum reflectivity.
- Create the cooking chamber: Line the bottom with black construction paper (or paint matte black) to absorb heat. This surface should cover 80% of the base.
- Add insulation: Fill the 2" gap between inner and outer boxes with crumpled newspaper. This critical step improves heat retention by 30%.
- Make the window: Cut a flap in the box lid, covering the opening with clear oven bag stretched taut and secured with tape.
- Install reflector: Create a foil-covered cardboard flap that angles sunlight through the window. The ideal angle is 45 degrees from horizontal.
Realistic Performance Expectations
Many guides overpromise what DIY solar ovens can achieve. Based on extensive testing in various conditions, here's what you can actually expect:
| Food Type | Required Temperature | DIY Solar Oven Capability | Cooking Time |
|---|---|---|---|
| Vegetable soup | 180-200°F | Easily achieved | 2-3 hours |
| Rice and grains | 200-210°F | Achieved on sunny days | 1.5-2.5 hours |
| Cookies | 300-325°F | Borderline achievable | 1-1.5 hours |
| Whole chicken | 325-350°F | Rarely achieved | Not recommended |
Proven Optimization Techniques
These field-tested adjustments significantly improve performance without adding complexity:
- Double glazing: Use two layers of plastic with a 1" air gap between them to reduce heat loss by 25%
- Thermal mass: Place dark stones or bricks inside the oven to absorb and retain heat during cloudy periods
- Tracking system: A simple wooden stand with adjustable angle extends effective cooking time by 2-3 hours daily
- Reflective skirt: Add a secondary reflective panel around the base to capture low-angle sunlight
Safety Considerations Often Overlooked
While solar ovens are generally safe, these precautions prevent common issues:
- Always use oven-safe containers - some plastics release toxins when heated, even without flames
- Check food temperature with a thermometer - solar cooking doesn't always show visual cues of doneness
- Avoid glass containers that might shatter from thermal stress
- Never leave cooking unattended for more than 30 minutes during peak sun hours
Getting Started: Your First Solar Cooking Experience
For your initial test, try these foolproof recipes that work reliably in DIY solar ovens:
- Solar scrambled eggs: Cooks in 45-60 minutes on a sunny day. Beat eggs with salt and pour into black skillet.
- Herb-infused rice: Combine 1 cup rice, 1.5 cups water, and herbs in black pot. Cooks in 1.5-2 hours.
- Slow-cooked apples: Core apples, fill with raisins and cinnamon. Bakes in 2 hours with tender results.
Remember that solar cooking requires patience - it's not about replicating conventional cooking speed but embracing a different rhythm that connects you with natural energy cycles. Start with simple recipes on clear days between 10am-2pm when the sun is highest, and gradually expand your solar cooking repertoire as you learn your oven's capabilities.
Frequently Asked Questions
How long does it take to cook food in a DIY solar oven?
Cooking times vary by food type and weather conditions. Most dishes take 1.5-3 hours in optimal conditions (clear sky, sun angle above 45 degrees). Solar cooking generally takes 1.5-2 times longer than conventional methods, but requires minimal attention once set up.
Can I use a DIY solar oven on cloudy days?
Basic designs require direct sunlight and won't work effectively when clouds block more than 30% of the sun. Advanced models with thermal mass elements can maintain cooking temperatures during brief cloud cover, but consistent cloudiness prevents effective solar cooking. The "broken cloud" pattern (alternating sun and clouds) works better than uniform overcast conditions.
What's the maximum temperature a cardboard solar oven can reach?
Well-constructed cardboard solar ovens typically reach 250-350°F (120-175°C) in ideal conditions. Temperature depends on reflector quality, insulation, and sun intensity. Cardboard begins to degrade around 400°F, making higher temperatures unsafe for this material. For hotter cooking, consider metal or ceramic alternatives.
Do I need special cookware for solar cooking?
Yes - use dark, thin-walled pots with tight-fitting lids. Black steel or cast iron works best as they absorb heat efficiently. Avoid shiny or reflective cookware. Oven-safe glass (like Pyrex) works but heats slower than metal. Never use plastic containers, even those labeled microwave-safe, as they can melt or release chemicals at sustained high temperatures.
How do I know when food is safely cooked in a solar oven?
Always use a food thermometer to verify internal temperatures, as visual cues can be misleading. Poultry should reach 165°F, ground meats 160°F, and fish 145°F. The "danger zone" (40-140°F) is particularly important with slower cooking methods - ensure food passes through this range quickly by preheating your oven before adding food.
