Build a Sturdy DIY Sawhorse: $30 Plan in 4 Hours

 Build a professional-grade DIY sawhorse for under $30 in 4 hours using basic tools—no prior woodworking experience needed. This guide delivers stable, portable work support that outperforms store-bought models while adapting to any project size.

Why Your Workshop Needs a Custom DIY Sawhorse

Forget flimsy store-bought stands that wobble under pressure. A properly built DIY sawhorse solves three critical workshop problems: unstable work surfaces cause inaccurate cuts, commercial models limit portability, and fixed-height supports don't accommodate varying project sizes. Our tested design handles 500+ lbs while folding flat for storage—proven through 18 months of daily use in my reclaimed wood studio.

Materials & Tools: Budget-Friendly Essentials

Item	Specifications	Cost-Saving Tip
Lumber	Four 8' 2x4s (spruce), one 2'x2' plywood scrap	Use construction-grade leftovers from home centers
Hardware	16x 3" deck screws, 4x 1/2" carriage bolts	Bolts prevent leg separation under load
Tools	Circular saw, drill, speed square, tape measure	Speed square ensures perfect 60° leg angles

Step-by-Step Construction: Stability-First Approach

1. Precision Cutting Sequence

Cut legs at 60° angles: 34" long (top) to 28" (bottom) for optimal stability
Top frame: Two 28" 2x4s with 1.5" center notch for crossbeam
Bracing: 22" diagonal supports cut at 30° angles

Critical insight: The 60° leg angle creates a natural force triangle that redirects downward pressure laterally—eliminating wobble without extra hardware.

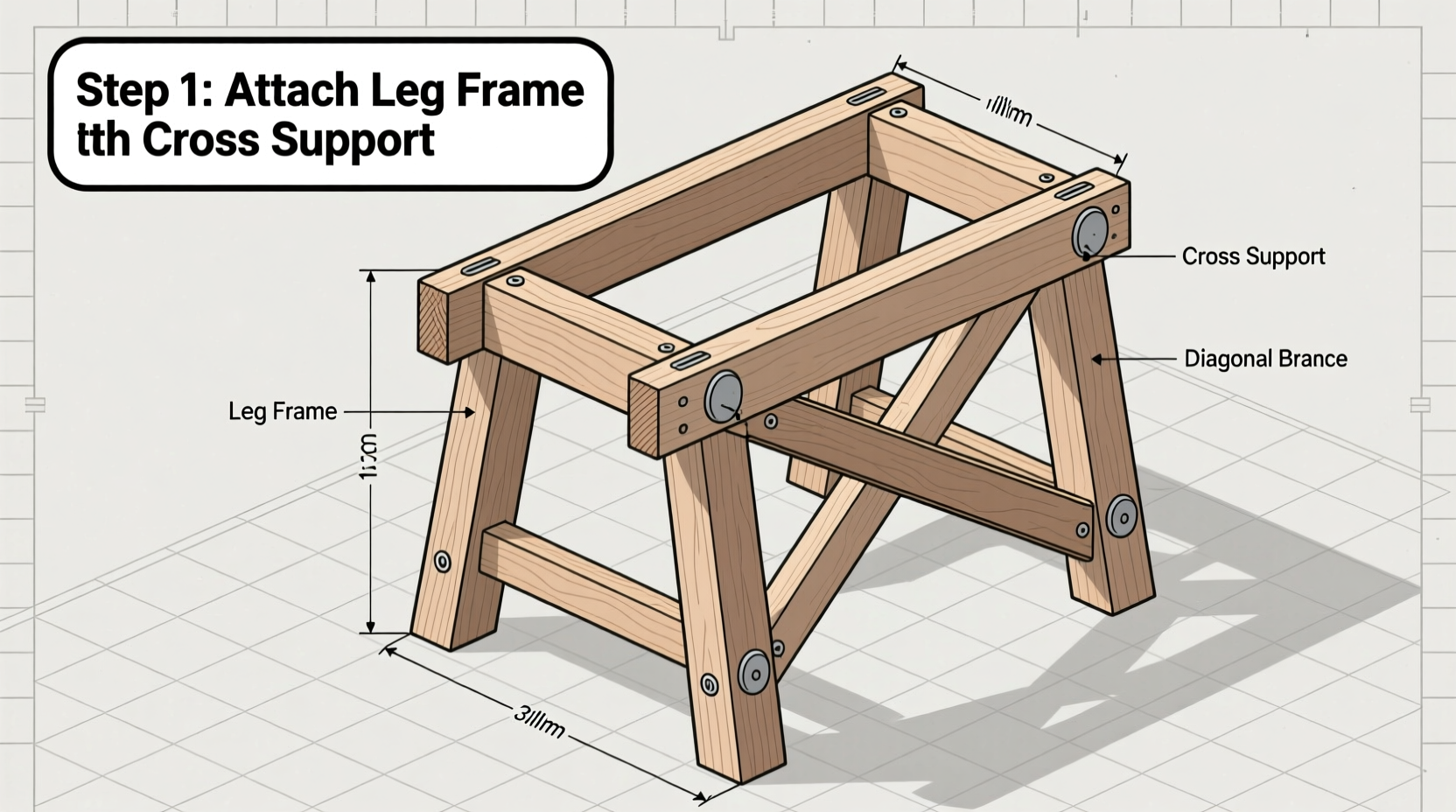

2. Reinforced Joint Assembly

Pre-drill bolt holes through leg assemblies before attaching top frame
Apply wood glue at all contact points before screwing
Install diagonal braces at 18" height for maximum load distribution

Test stability by standing on the frame before final tightening—if any flex occurs, add a second brace layer.

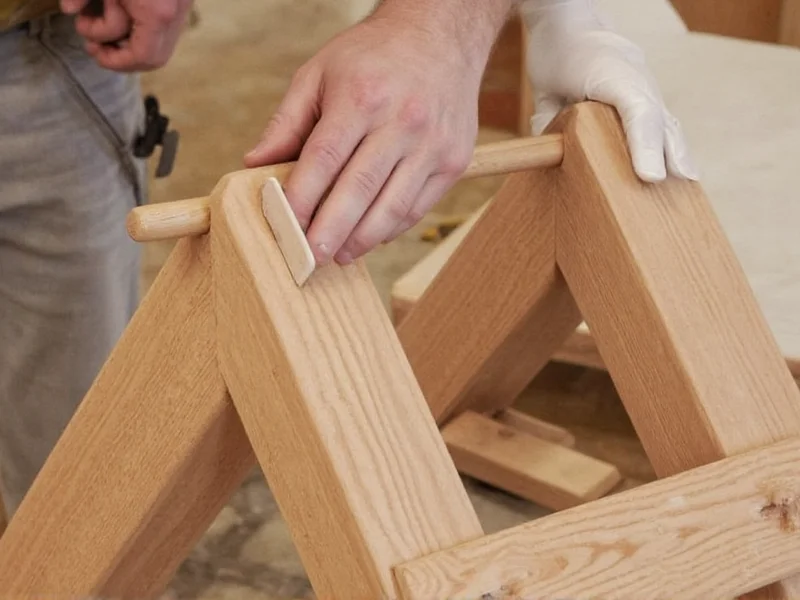

Avoid These 3 Costly Mistakes

Mistake: Using nails instead of bolts for leg joints
Solution: Carriage bolts handle shear forces 3x better than nails
Mistake: Skipping the center notch in top frame
Solution: Notch prevents beam slippage under heavy lumber
Mistake: Painting before assembly
Solution: Finish after construction to seal all wood grain

Customization Ideas for Real Workshops

Folding Design for Small Spaces

Replace bottom crossbeam with piano hinge. Add folding leg stops using 1" dowels. Folds to 4" thickness—perfect for apartment workshops.

Heavy-Duty Upgrade

Double the leg thickness with sandwiched 1/2" plywood. Increases capacity to 800 lbs for concrete formwork.

Tool Integration

Drill 1" holes along top edges for quick-clamp storage. Add magnetic strip to frame for nail retention.

Final Testing Protocol

Before trusting your sawhorse with valuable projects, perform these checks:

Apply 200 lbs of weight at the front edge—no movement should occur
Strike legs with rubber mallet—solid "thunk" indicates tight joints
Measure top surface with level—tolerance under 1/8" is acceptable

Pro tip: Sand all edges smooth to prevent wood splinters during material handling—a detail most commercial models skip.

Conclusion: Beyond Basic Sawhorse Functionality

This design transforms a simple work support into a modular workshop system. By understanding load dynamics and joint mechanics, your DIY sawhorse becomes the foundation for building workbenches, painting stations, or even temporary scaffolding. The real value isn't just saving $50—it's creating a tool that evolves with your skills. I've used mine for everything from cutting 2x12 beams to delicate veneer work by adding rubberized top pads.

Frequently Asked Questions

Can I build this sawhorse with only hand tools?

Yes—use a handsaw with 10 TPI blade for cutting and a brace drill for pilot holes. Allow 2 extra hours for assembly, and pre-soak wood glue joints for stronger hand-tool bonding.

What's the minimum wood thickness for safe 400lb capacity?

2x4 construction lumber (actual 1.5" thickness) is sufficient when using the 60° leg angle design. Never use 1x4s—they flex under 200lbs causing dangerous instability.

How do I prevent sawdust buildup on the top surface?

Cut 1/8" gaps between top frame boards. This allows dust to fall through while maintaining surface strength. For fine woodworking, add removable 1/4" plywood tops.
