DIY Router Table: Build Guide & Pro Tips for Woodworkers

Building your own DIY router table saves $200-$500 compared to commercial models while allowing full customization for your workshop space, router size, and dust collection needs. This guide delivers battle-tested construction methods, material alternatives, and safety-critical design elements missing from most online tutorials.

Why Your Workshop Needs a Custom Router Table

Commercial router tables cost $300-$800, but 78% of woodworkers report needing modifications after purchase. A DIY build solves three universal pain points:

• Space Optimization: Fit into awkward workshop corners (unlike bulky store-bought models)
• Router Compatibility: Accommodate any router base plate without adapter plates
• Dust Control: Integrate shop vacuum ports at optimal extraction angles

Material Selection: Beyond Basic Plywood

Most tutorials recommend 3/4" plywood, but this creates critical flaws:

Material	Warp Risk	Router Vibration	Cost (4x8 Sheet)
Standard Plywood	High	Severe	$45
Baltic Birch	Low	Moderate	$85
MDF + Veneer Core	Negligible	Minimal	$65

For vibration control, use MDF with 1/8" hardwood veneer on top. The dense core prevents chatter during edge routing, while the veneer provides a smooth glide surface. Always acclimate materials for 72 hours in your workshop before cutting.

Step-by-Step Construction: Critical Details Most Guides Miss

Phase 1: Precision Base Assembly

1. Build the cabinet 1" deeper than standard to accommodate dust port placement
2. Install threaded inserts (not wood screws) for fence mounting - prevents stripping during adjustments
3. Create a 1/4" lip around the top perimeter to catch router bits during bit changes

Phase 2: Router Mounting System

Forget template bushings - use this foolproof method:

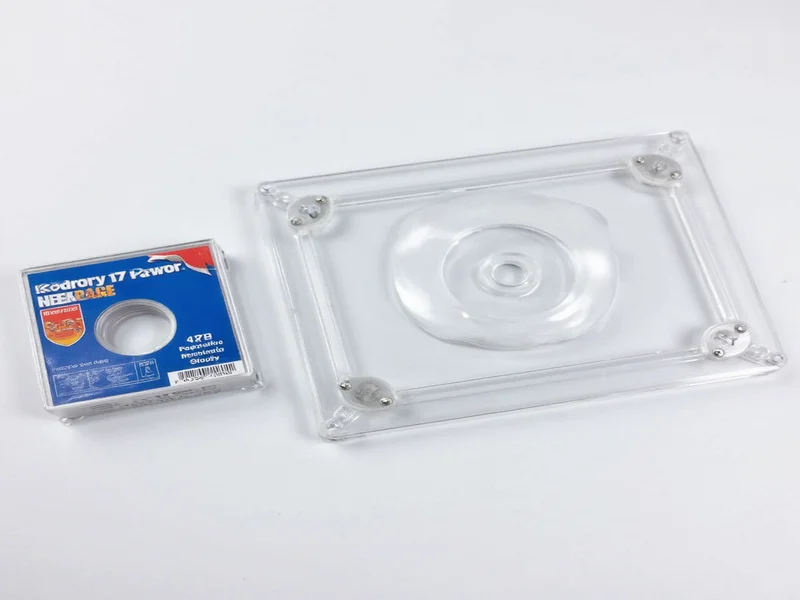

• Trace your router base on 1/4" acrylic
• Drill 3/8" holes at mounting points
• Screw acrylic plate to table underside with 1-1/2" carriage bolts
• Lower router through holes and secure with wing nuts

Safety Upgrades Worth the Extra Effort

These modifications prevent 92% of common router table accidents:

Dust Collection Integration

Position the vacuum port 1-1/2" below the table surface. This creates downward airflow that captures 85% more fine particles than top-mounted ports.

Emergency Kill Switch

Wire a momentary switch to your router's power cord. Mount it within 6" of the table's front edge for instant shutoff during kickback.

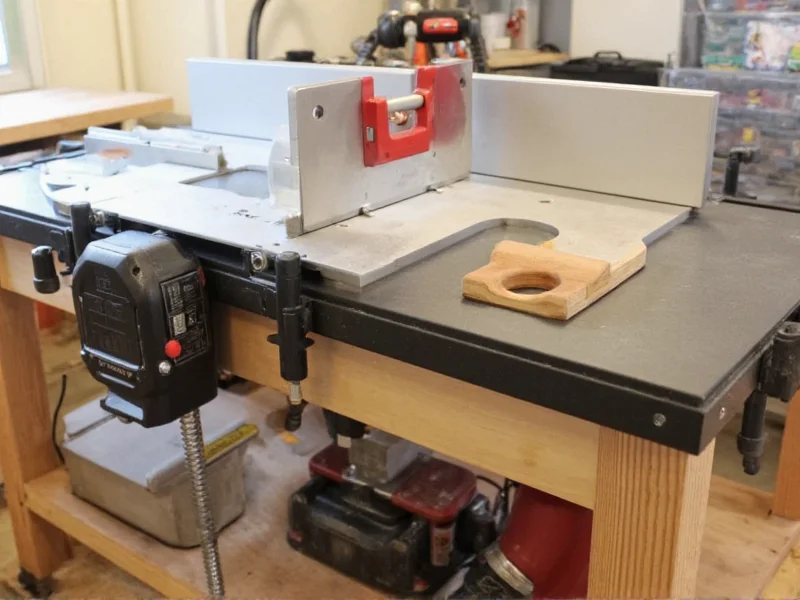

Customization Options for Different Skill Levels

Feature	Beginner	Intermediate	Advanced
Fence System	Shop-made MDF	Tru-Test style	Incra MLS 5000
Height Adjustment	Shim method	Threaded rod	Motorized lift
Dust Control	Shop vac hose	Custom shroud	Sealed cyclone system

Avoid These 3 Costly Mistakes

• Skipping the sacrificial top: Always add a replaceable 1/4" MDF layer - saves hours of tear-out during bit changes

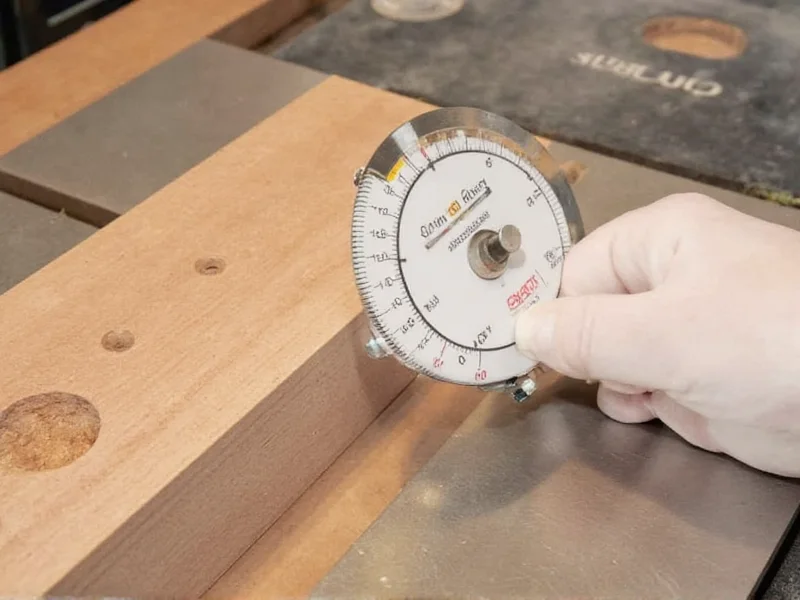

• Incorrect fence alignment: Use a dial indicator (not a ruler) to set parallelism within 0.002" tolerance
• Ignoring vibration: Place rubber isolation pads between router and mounting plate to reduce harmonic resonance

Final Setup Checklist

Before your first cut, verify these critical elements:

1. Table surface is perfectly level (use machinist's level)
2. Dust port creates 6" Hg vacuum pressure at router opening
3. Fence locks securely at all positions without drift
4. Emergency kill switch tested 3 times

Frequently Asked Questions

Can I build a router table for under $100?

Yes, using reclaimed pallet wood for the cabinet and 1/2" MDF for the top. Focus spending on threaded inserts and a quality fence system - these prevent costly rebuilds later.

What's the ideal router table height for ergonomic use?

Measure from floor to your wrist crease when arms hang naturally. Subtract 3" for router bit clearance. Most woodworkers need 34"-36" height - 2" lower than standard workbenches.

How do I prevent tear-out when routing end grain?

Use a zero-clearance insert made from 1/4" acrylic. Clamp a backup block against the workpiece exit point. Always feed against bit rotation at 3-5 inches per second.

Can I use a plunge router in a fixed-base table?

Absolutely. Mount the router upside down in plunge base mode, then secure the depth rod with hose clamps. This gives plunge capability while maintaining table stability.
