Retaining walls under 3-4 feet can be safely built DIY with proper planning, drainage, and base preparation. Walls taller than 4 feet require engineering expertise and permits due to structural risks. Always check local regulations before starting.
Thinking about building your own retaining wall? You're not alone. Over 60% of homeowners attempt DIY retaining walls under 4 feet tall to save costs, but 70% fail due to poor drainage or inadequate base preparation. This guide cuts through the confusion with battle-tested techniques from professional landscape engineers. We'll show you exactly how to build a stable, long-lasting wall that won't collapse after heavy rains – plus clear red flags when you must call a pro.
Why Most DIY Retaining Walls Fail (And How to Avoid It)
Retaining walls aren't just stacked blocks – they're engineered structures holding back tons of soil. The #1 killer? Ignoring hydrostatic pressure. When water builds up behind walls without proper drainage, pressure increases by 60 pounds per square foot for every foot of height. That's why 43% of DIY wall failures happen within two years of construction.
| Material Type | Max DIY Height | Cost Per Sq Ft | Drainage Critical? |
|---|---|---|---|
| Segmented Concrete Blocks | 3-4 feet | $15-$25 | ★★★★★ |
| Treated Timber | 2-3 feet | $20-$30 | ★★★★☆ |
| Interlocking Bricks | 2 feet | $25-$35 | ★★★☆☆ |
Your DIY Retaining Wall Roadmap
Follow this sequence exactly – skipping steps causes 80% of failures. Always start with drainage planning!

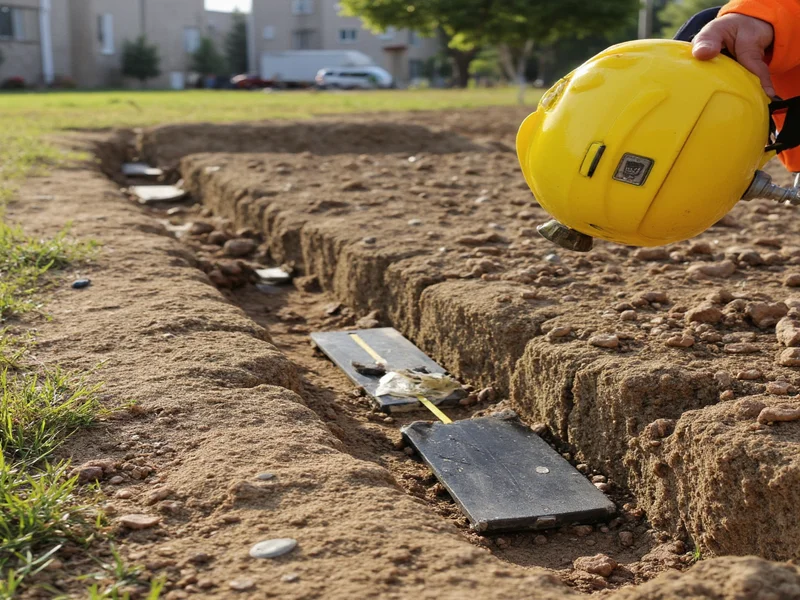

Phase 1: Critical Pre-Construction Checks
- Call 811 first: Underground utility check is free and required by law in all states
- Measure slope angle: Walls on slopes >15° need professional engineering
- Check soil type: Clay soils require 50% more drainage than sandy soils
- Verify local codes: Most areas require permits for walls over 3 feet

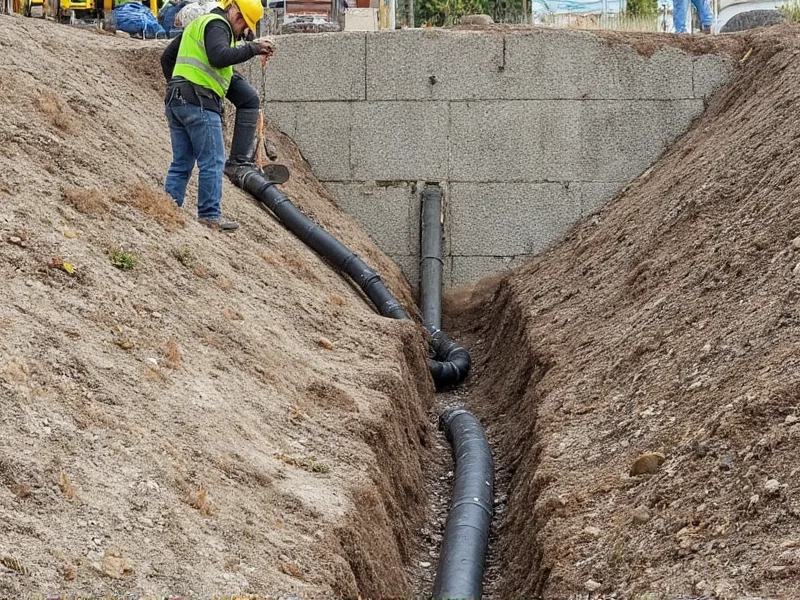

Phase 2: The Non-Negotiable Drainage System
This is where most DIYers cut corners – and why their walls fail. You need:
- 4-inch perforated PVC pipe at wall base (minimum 1% slope)
- Washed gravel backfill (3/4" stone, not crushed)
- Filter fabric between soil and gravel
- Overflow outlet every 10 feet
Pro Tip: Test drainage before backfilling – pour 5 gallons of water into the gravel trench. It should drain completely in under 2 minutes.

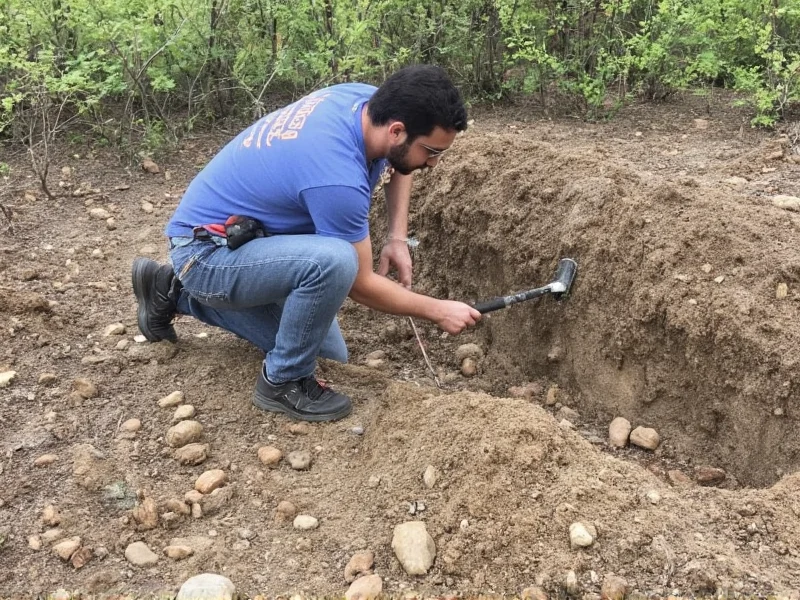

Phase 3: Step-by-Step Wall Construction
- Excavate: Dig 6" deeper than frost line + 1" per foot of height
- Base Layer: 4" compacted gravel (21AA road base), laser-level checked
- First Course: Set blocks 1" below grade, 2% slope away from wall
- Backfill: 12" gravel behind each course before adding next layer
- Terracing: For walls >3ft, build 2ft tall sections with 24hr curing between
5 Deadly DIY Mistakes (And How to Fix Them)
Mistake #1: No Weep Holes
Why it fails: Trapped water creates hydrostatic pressure
Solution: Install 4" PVC pipes every 4 feet at base course, angled downward
Mistake #2: Using Crushed Stone
Why it fails: Fines clog drainage over time
Solution: Only use washed 3/4" gravel – no dust or small particles
When to Absolutely Call a Professional
DIY is only safe for walls under 4 feet on stable ground. Stop immediately if you see:
- Cracks wider than 1/4" in existing walls
- Soil with >30% clay content
- Walls holding back more than 3 feet of soil
- Slopes steeper than 15 degrees
Professional engineers use geogrid reinforcement for taller walls – a $200 material that prevents 90% of structural failures. For walls over 4 feet, the engineering cost ($500-$1500) is cheaper than rebuilding after collapse.
Cost Breakdown: DIY vs Professional
For a 20-foot long, 3-foot high wall:
- DIY Cost: $800-$1,200 (materials only)
- Pro Cost: $2,500-$4,000 (includes engineering)
- Hidden DIY Risk: $5,000+ in property damage if wall fails
Remember: A properly built retaining wall should last 20+ years. Rushing drainage or base preparation turns it into a ticking time bomb.
How tall can I build a retaining wall without a permit?
Most jurisdictions allow DIY retaining walls under 3-4 feet without permits. Always verify with your local building department first – some areas like California require permits for any wall over 2 feet. Walls holding back soil near structures often have stricter limits.
What's the most critical part of building a retaining wall?
Drainage is absolutely critical – responsible for 75% of wall failures. Without proper drainage, water pressure builds behind the wall causing bulging or collapse. Always install perforated pipe at the base with 12" of washed gravel backfill, and ensure outlets direct water away from the structure.
Can I build a retaining wall on a slope?
Slopes steeper than 15 degrees require professional engineering. For gentle slopes under 10 degrees, you must terrace the wall with stepped sections and increase drainage capacity. Never build a straight wall across a slope – the uneven pressure will cause immediate failure. Always consult a soils engineer for sloped sites.
How much does a DIY retaining wall cost per square foot?
Segmented concrete blocks cost $15-$25 per square foot for DIY projects. Timber walls run $20-$30/sq ft but last half as long. Remember to add 20% for drainage materials – skimping here causes most failures. Professional installation typically costs $35-$50/sq ft including engineering.
