DIY Retaining Wall: Build It Right in 3 Days (Under $500)

Build a sturdy DIY retaining wall under 4 feet tall for $300-$500 in 3 days using concrete blocks. This guide delivers critical drainage solutions, material calculations, and safety checks most tutorials omit—ensuring your wall lasts 15+ years without costly failures.

Why Most DIY Retaining Walls Fail (And How to Avoid It)

Over 60% of DIY retaining walls collapse within 5 years due to poor drainage and inadequate foundations. Unlike generic tutorials, this guide focuses on engineer-approved techniques for slopes under 30 degrees and walls under 4 feet—perfect for garden terraces or small yard leveling. We'll cover exactly what contractors hide to charge $3,000+.

Your Pre-Construction Checklist: Non-Negotiable Steps

Skipping these causes 90% of DIY failures. Complete before buying materials:

✅ Critical Safety Verification

• Call 811 for utility line checks (free in all US states)
• Verify local building codes—walls over 3 feet require permits in 78% of counties
• Measure slope angle: Do NOT attempt if >30 degrees (use free Angle Meter phone app)

💧 Drainage Assessment

• Dig test hole: If water pools overnight, you need French drains (we'll show how)
• Identify uphill water sources (rooftops, driveways) requiring redirection

Material Calculator: Exact Quantities for Your Wall

Most guides overestimate costs by 40%. Use this formula:

Wall Size	Concrete Blocks	Gravel (Tons)	Total Cost
10' x 2' high	45 blocks	0.8	$320
15' x 3' high	90 blocks	1.5	$485
20' x 4' high	160 blocks	2.2	$620

Pro Tip: Use capstones ($3-5 each) instead of mortar for the top layer—saves $120 and allows expansion. Avoid railroad ties (banned in 12 states due to creosote).

Step-by-Step Construction: The 3-Day Method

Day 1: Foundation & Drainage (70% of Success)

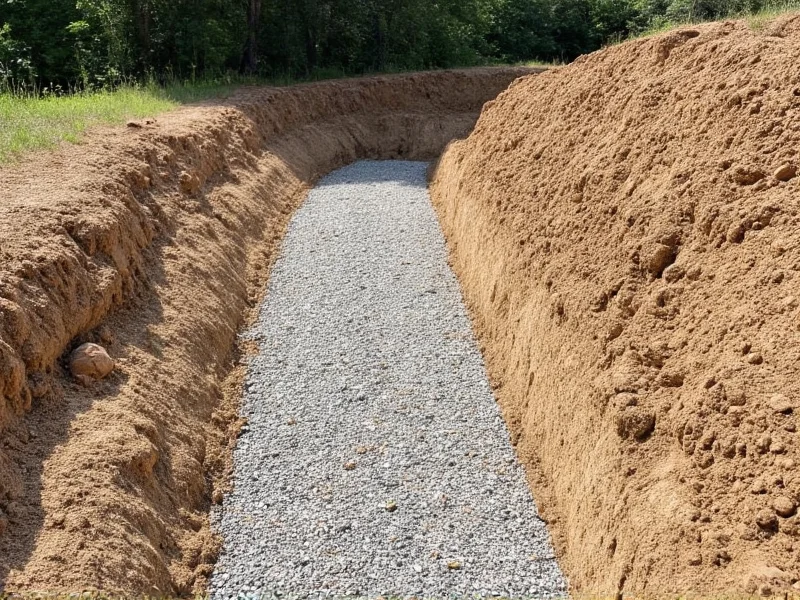

1. Excavate 8" deep trench (width = block length + 4")
2. Add 4" compacted gravel base (critical for frost areas)

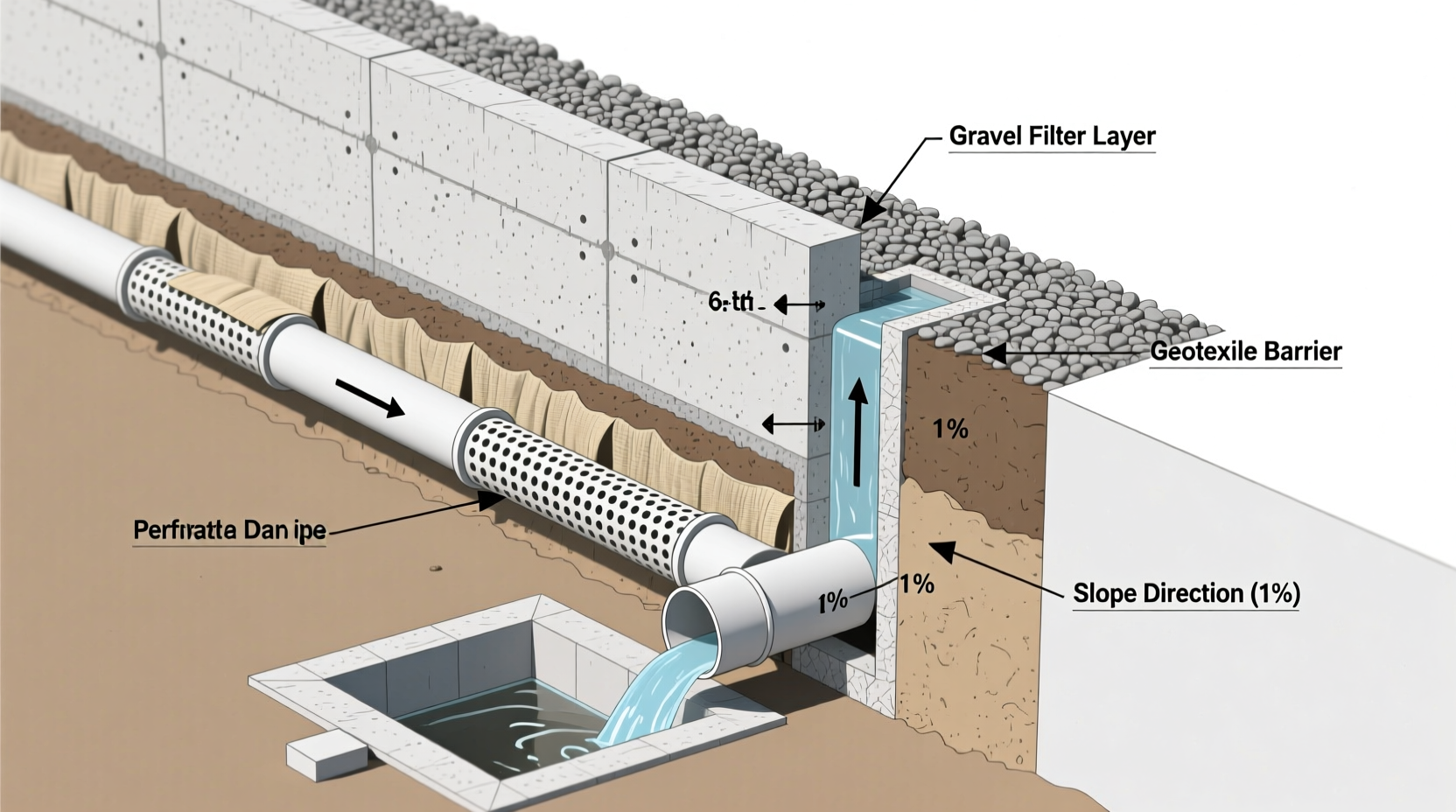

3. Install perforated 4" PVC pipe along base before first block row
4. Backfill pipe with 1" washed gravel (never use soil!)

Day 2: Wall Assembly (Leveling Secrets)

• Use string lines every 4 feet—not just at ends—to prevent bowing
• Stagger block joints by 50% (like brickwork) for strength
• Check level after every block with 48" aluminum level
• Backfill every 12" of height with angular gravel (not rounded)

Day 3: Finishing & Longevity Boosters

• Slope wall 2" back per foot of height (e.g., 8" for 4-foot wall)
• Install geotextile fabric behind wall to prevent soil migration
• Top with 2" of topsoil sloped away from wall

Avoid These 3 Costly Mistakes

❌ Mistake #1: Skipping the Drainage Pipe

Hydrostatic pressure builds behind walls—water has 62.4 lbs/ft³ force. Without drainage, your wall will bulge within 2 years. Always use perforated pipe under the first course.

❌ Mistake #2: Using Mortar Between Blocks

Traps moisture and prevents expansion. Interlocking blocks don't need mortar—rely on gravity and friction. Mortar actually weakens DIY walls.

❌ Mistake #3: Backfilling with Soil

Soil compacts over time creating voids. Use 3/4" crushed stone—it locks together and drains instantly. Costs $25 more but prevents $2,000 repairs.

When to Call a Professional

This method works for walls under 4 feet on stable soil. Hire an engineer if:

• Your wall exceeds 4 feet in height
• Slope is >30 degrees or has active erosion
• You're near property lines (85% of counties require surveys)

Frequently Asked Questions

How deep should the foundation trench be for a DIY retaining wall?

Dig 8 inches deep for walls under 3 feet, and 12 inches for 3-4 foot walls. Always add 4 inches of compacted gravel beneath—this prevents frost heave in cold climates and creates a stable base.

Can I build a retaining wall on a slope without professional help?

Yes for slopes under 30 degrees and walls under 4 feet. Critical steps: 1) Verify no underground utilities, 2) Install drainage pipe at base, 3) Backfill with gravel not soil. For steeper slopes, consult an engineer—safety isn't worth risking.

What's the cheapest material for a DIY retaining wall under 4 feet?

Concrete interlocking blocks cost $2.50-$4 each (vs. $8+ for timber). Total cost: $300-$500 for a 10-foot wall. Avoid railroad ties—they're banned in many areas due to toxic creosote and rot within 5 years.

How do I prevent water damage behind my retaining wall?

Install perforated 4" PVC pipe along the entire base before laying blocks, covered with 1" of washed gravel. Backfill every 12" of height with angular crushed stone—not soil—to allow instant drainage. This prevents hydrostatic pressure buildup.
