DIY Pond Filter: Build Effective System for Clear Water

Build an effective DIY pond filter for 60-70% less than commercial systems using readily available materials. This guide provides step-by-step instructions for creating a dual-stage filtration system that removes debris while supporting beneficial bacteria colonies essential for clear, healthy pond water.

Why Your Pond Needs Proper Filtration

Without adequate filtration, ponds quickly become green, murky, and unhealthy for fish and plants. Proper filtration serves three critical functions:

Essential Filtration Functions

• Mechanical filtration - Removes visible debris like leaves and fish waste
• Biological filtration - Hosts beneficial bacteria that break down harmful ammonia
• Water circulation - Prevents stagnant areas where algae thrive

A well-designed DIY pond filter system addresses both mechanical and biological needs while maintaining proper water flow. Commercial systems often cost $300-$1,000+, while a homemade version using repurposed containers and affordable media typically costs $100-$300.

Choosing Your DIY Pond Filter Type

Not all pond filters work equally well for every situation. Consider these factors when selecting your design:

Filter Type	Best For	Cost Range	Maintenance Frequency
Barrel Filter	Small ponds (up to 500 gallons)	$80-$150	Weekly cleaning
Pressure Filter	Medium ponds (500-1,500 gallons)	$150-$250	Bi-weekly cleaning
Waterfall Filter	Large ponds (1,500+ gallons)	$200-$350	Monthly cleaning
Trickle Tower	Koi ponds requiring high oxygenation	$250-$400	Monthly cleaning

For beginners, the barrel filter offers the simplest construction with readily available materials. Pressure filters work well when space is limited since they can be buried. Waterfall filters double as attractive water features while providing excellent biological filtration.

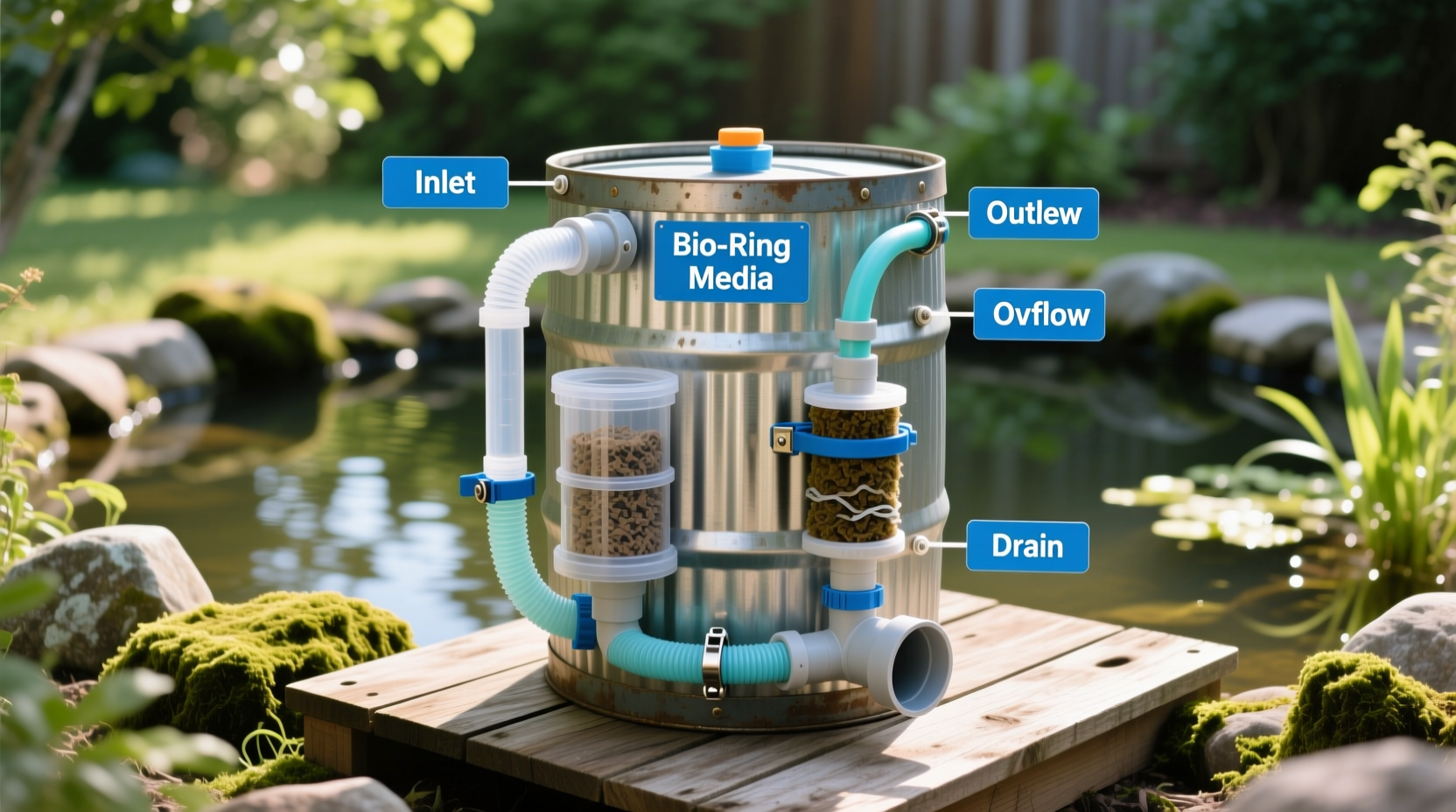

Building a Barrel Filter: Step-by-Step Guide

This affordable DIY pond filter design uses a repurposed 55-gallon food-grade drum and provides both mechanical and biological filtration for ponds up to 500 gallons.

Materials You'll Need

• 55-gallon food-grade plastic drum (cleaned thoroughly)
• PVC pipes (1.5" and 2" diameter)
• Drill with hole saw attachment
• Filter media: Foam pads, lava rock, and bio-balls
• Submersible pond pump (size appropriate for your pond)
• Plumbing connectors and sealant
• Scissors and utility knife

Construction Process

1. Prepare the drum - Clean thoroughly with vinegar solution, rinse well
2. Create inlet and outlet - Drill 2" holes near top and bottom on opposite sides
3. Install internal baffles - Cut foam sheets to create three chambers inside
4. Add filter media - First chamber: coarse foam (mechanical), second: fine foam, third: lava rock and bio-balls (biological)
5. Connect plumbing - Attach PVC pipes with proper seals to prevent leaks
6. Test for leaks - Fill with water before final installation

Installation and Startup Process

Proper installation ensures your DIY pond filter works effectively from day one:

Installation Checklist

• Position filter slightly lower than pond water level for gravity return
• Connect pump to filter inlet with appropriate hose size
• Ensure overflow path back to pond is unobstructed
• Prime the system by filling with pond water before starting
• Add beneficial bacteria starter to jumpstart biological filtration

The cycling process takes 4-6 weeks for beneficial bacteria to establish fully. During this time, test water daily for ammonia and nitrites. Add fish gradually once tests show zero ammonia and nitrites with detectable nitrates.

Maintenance Schedule for Long-Term Success

Regular maintenance keeps your DIY pond filter performing optimally:

Weekly Tasks

• Clean mechanical filter media (foam pads)
• Check for clogs in inlet and outlet
• Verify proper water flow rate

Monthly Tasks

• Rinse biological media in pond water (never tap water)
• Inspect PVC connections for leaks
• Check pump for debris buildup

Seasonal Tasks

• Fall: Add extra mechanical filtration for falling leaves
• Winter: Drain and store if in freezing climate
• Spring: Thorough cleaning and system check

Troubleshooting Common DIY Pond Filter Issues

Even well-designed systems encounter problems. Here's how to address frequent issues:

Problem: Green Water

Causes: Insufficient biological filtration, too much sunlight, overfeeding fish

Solutions: Increase biological media, add floating plants for shade, reduce feeding, consider adding UV clarifier

Problem: Low Water Flow

Causes: Clogged mechanical filter, undersized pump, kinked hose

Solutions: Clean filter media, check pump size matches pond volume, inspect entire water path

Problem: Ammonia Spikes

Causes: New system cycling, overstocked pond, dead fish, filter disturbance

Solutions: Test water parameters, perform partial water changes, add ammonia remover temporarily, avoid cleaning all media at once

Advanced Upgrades for Better Performance

Once your basic system is running smoothly, consider these enhancements:

• UV clarifier addition - Mount a UV unit after your filter to eliminate green water algae
• Air pump integration - Increases oxygen levels which supports more beneficial bacteria
• Automatic backwash system - Reduces manual cleaning frequency with timer-controlled flush cycles
• Multiple biological chambers - Different media types support diverse bacterial colonies

Remember that adding complexity requires corresponding maintenance. Start simple, master the basics, then consider upgrades based on your specific pond's needs.

Frequently Asked Questions

How often should I clean my DIY pond filter?

Clean mechanical media weekly when visibly dirty, but only rinse biological media monthly using pond water (never tap water). Complete system cleaning should happen seasonally. Over-cleaning removes beneficial bacteria that keep your pond healthy.

Can I use household materials for my pond filter media?

Yes, but with caution. Old pantyhose work well for containing media, but avoid synthetic sponges that degrade. Use pond-safe materials like lava rock, ceramic rings, or specialized bio-media. Never use materials that might leach chemicals into your water.

How do I know if my DIY pond filter is working properly?

Clear water, stable water parameters (ammonia and nitrites at zero), and healthy fish indicate proper function. Test water weekly with a liquid test kit. You should also notice consistent water flow through your system without frequent clogs.

What's the minimum flow rate for a DIY pond filter?

Your filter should process the entire pond volume at least once every two hours. For a 500-gallon pond, you need a pump moving at least 250 gallons per hour. Higher flow rates improve filtration but may disturb fish in smaller ponds.
