Build Your Own DIY Irrigation System: Save Water & Time

Building a DIY irrigation system saves homeowners 30-50% on water bills while ensuring consistent plant health. A properly installed drip system delivers water directly to roots, reducing evaporation by 90% compared to traditional watering methods. This guide provides step-by-step instructions for creating an affordable, efficient irrigation solution that pays for itself within one growing season.

Why DIY Irrigation Beats Manual Watering

Professional irrigation installations typically cost $3,000-$5,000 for an average 1/4 acre lot. With basic tools and $200 in materials, you can create a customized system that targets water exactly where plants need it. The EPA estimates outdoor watering accounts for 30-60% of residential water use—smart irrigation reduces this significantly while preventing overwatering that causes root rot.

Irrigation Type	Water Efficiency	Installation Cost	Best For
Drip System	90-95%	$150-$300	Gardens, shrubs, trees
Soaker Hose	70-80%	$50-$150	Vegetable rows, flower beds
Sprinkler System	50-70%	$200-$400	Lawns, large open areas

Planning Your Water-Saving System

Before purchasing materials, complete these essential planning steps:

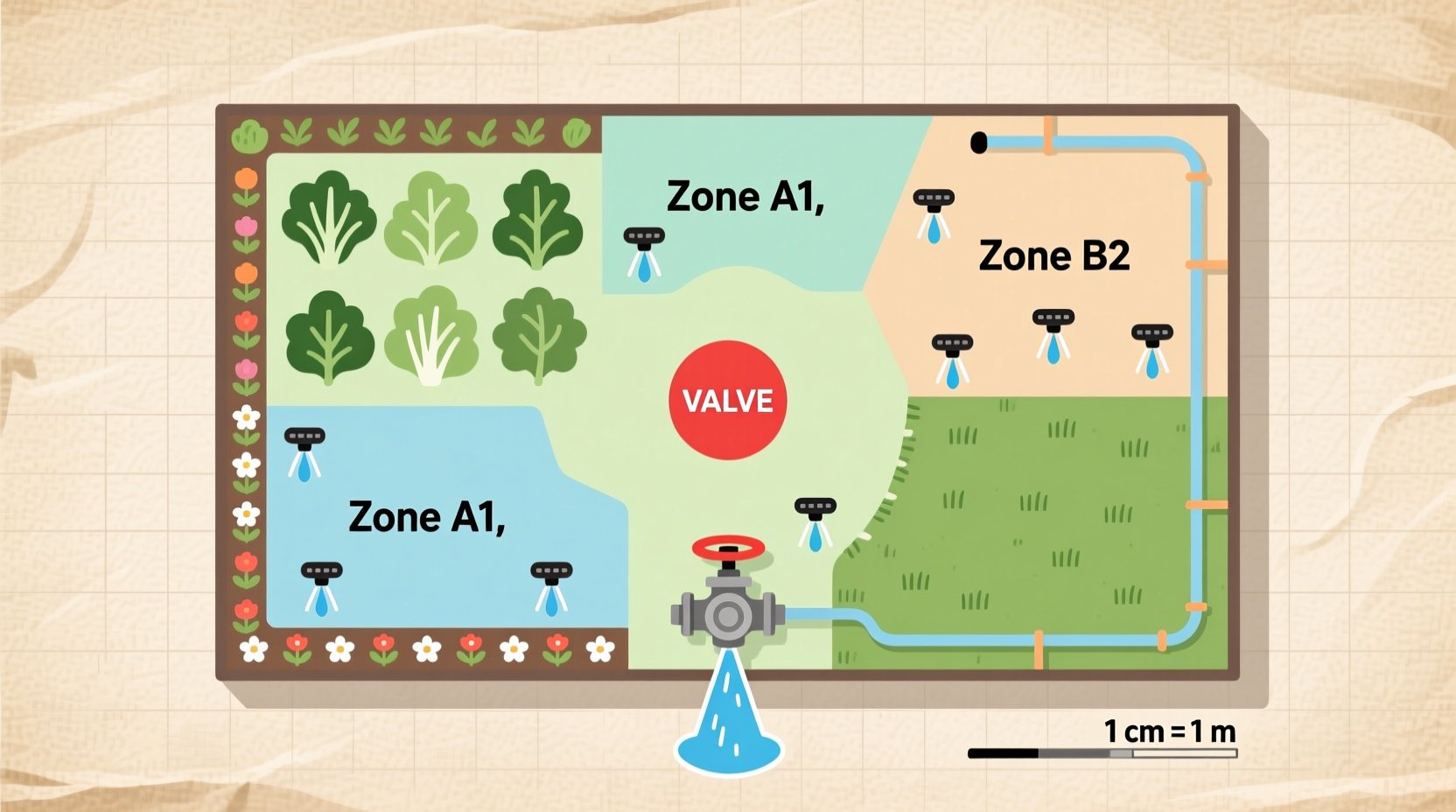

1. Map Your Water Zones

Group plants by water needs—vegetables require more frequent watering than drought-tolerant native plants. Create zones that match your water pressure capabilities. Most residential systems operate at 30-50 PSI; exceeding this causes misting and uneven distribution.

2. Calculate Water Requirements

Use this formula to determine flow rate needs:

Total GPM = (Area in sq ft × 0.62) ÷ 96.3 ÷ Hours Available for Watering

Example: A 500 sq ft garden needing 1 inch of water weekly with 2-hour watering windows requires approximately 1.6 GPM.

Essential Tools & Materials Checklist

For a basic 500 sq ft drip system, gather these items before starting your DIY irrigation project:

• Pressure regulator (25-50 PSI)
• Backflow preventer (required by most municipalities)
• Filter system (200 mesh)
• Drip tubing (1/2 inch main line, 1/4 inch micro-tubing)
• Drip emitters (0.5, 1.0, or 2.0 GPH based on plant needs)
• Stainless steel hose clamps
• PVC pipe cutter or utility knife
• Stakes for tubing stabilization

Step-by-Step Installation Guide

Phase 1: Main Line Setup

1. Connect pressure regulator to outdoor spigot
2. Attach backflow preventer and filter in sequence
3. Run 1/2 inch main line along planned route, securing with stakes every 3 feet
4. Install end cap after final zone

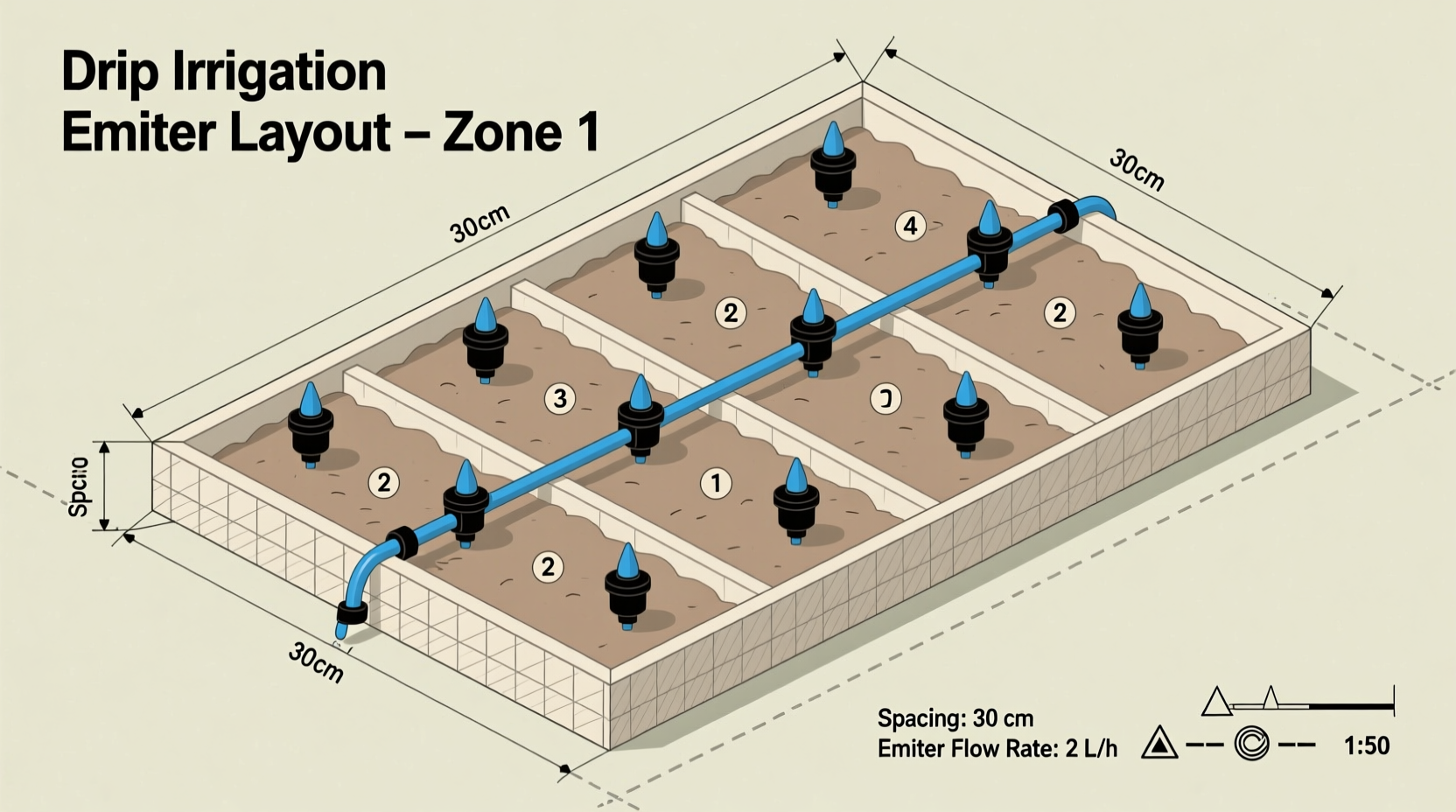

Phase 2: Emitter Placement

For optimal water delivery:

• Place emitters 12-18 inches apart for shrubs
• Use 6-8 inch spacing for vegetable gardens
• Double emitters for trees and large shrubs
• Install pressure-compensating emitters on sloped terrain

Avoid These 5 Costly Mistakes

Even experienced DIYers make these common irrigation errors:

Mistake #1: Ignoring Water Pressure Requirements

Drip systems require 25-50 PSI. Higher pressure causes misting and emitter blowouts. Always install a pressure regulator—even if your municipal supply seems adequate.

Mistake #2: Skipping the Filter

Sediment clogs emitters within weeks. A 200-mesh filter protects your investment and prevents uneven watering patterns.

Mistake #3: Incorrect Zone Sizing

Exceeding your water pressure capacity causes poor performance. Calculate total GPM requirements before designing zones.

Seasonal Maintenance Checklist

Extend your system's lifespan with these simple maintenance tasks:

Season	Maintenance Task	Frequency
Spring	Check for winter damage, replace damaged components	Before first use
Summer	Inspect emitters, clean filters, adjust timer settings	Monthly
Fall	Drain system, disconnect timer, store controller indoors	Before first freeze

Troubleshooting Common Issues

Fix these problems without calling a professional:

• Uneven watering: Check for clogged emitters or pressure imbalances. Install pressure-compensating emitters on slopes.
• Low water pressure: Verify filter isn't clogged and main line isn't kinked. Reduce number of emitters per zone.
• Water pooling: Emitters may be too close to surface. Bury tubing 1-2 inches deep in soil.
• Leaks at connections: Ensure proper insertion depth (5/8 inch for 1/2 inch tubing) and use stainless steel clamps.

Maximizing Water Savings With Smart Timing

Watering during peak sun hours wastes 30% or more to evaporation. Program your timer for early morning operation when temperatures are coolest. For most climates, watering 2-3 times weekly provides sufficient moisture while encouraging deeper root growth. Install a $20 rain sensor to automatically suspend watering during wet periods—most municipalities offer rebates for this simple water-saving device.

Frequently Asked Questions

How much can I save with a DIY irrigation system?

Homeowners typically save 30-50% on water bills with properly installed drip systems. The initial $150-$300 investment usually pays back within one growing season through reduced water consumption and healthier plants requiring fewer replacements.

Can I install irrigation on a sloped yard?

Yes, but you'll need pressure-compensating emitters that deliver consistent water flow regardless of elevation changes. Install check valves to prevent drainage from higher zones after watering stops, which causes erosion and dry spots.

How often should I replace drip irrigation components?

Quality drip tubing lasts 5-10 years with proper maintenance. Emitters typically need replacement every 3-5 years as mineral deposits accumulate. Filters should be cleaned monthly during watering season and replaced annually.

Is DIY irrigation legal in all areas?

Most municipalities require backflow preventers on all irrigation systems to protect drinking water supplies. Some drought-prone areas have specific regulations about irrigation schedules and water sources. Check with your local water authority before installation.
