DIY Incubator: Build Your Own Egg Hatcher for Under $50

Build a fully functional DIY incubator for under $50 that maintains precise temperature (99.5°F ±0.5°) and humidity (50-55% first 18 days, 65-70% last 3 days) for successful hatching. This guide provides tested methods using readily available materials, complete with safety precautions and calibration techniques that achieve 85%+ hatch rates when properly executed.

Creating your own egg incubator doesn't require expensive equipment or specialized skills. Thousands of backyard poultry enthusiasts successfully hatch chicks each year using homemade solutions that cost a fraction of commercial models. The key lies in understanding the fundamental requirements for embryo development and implementing reliable control systems for the critical environmental factors.

Why DIY Incubation Makes Sense

Commercial incubators often cost $200-$500, while a well-constructed DIY version delivers comparable results at one-fifth the price. Beyond the financial savings, building your own incubator provides valuable educational insights into embryonic development and environmental control systems. This hands-on approach builds troubleshooting skills that prove invaluable when issues arise during the critical 21-day incubation period.

DIY vs Commercial Incubators: Reality Check

• Cost: $30-$70 DIY vs $200-$500 commercial
• Hatch rate: 75-85% with proper DIY vs 85-90% commercial
• Customization: Complete control over design vs fixed features
• Educational value: Deep understanding of process vs black box operation

Essential Components for Successful Hatching

Every functional incubator must address four critical requirements: consistent temperature, proper humidity, adequate ventilation, and regular egg turning. Commercial models integrate these features, but DIY builders must implement each system thoughtfully. The margin for error is small – temperature fluctuations beyond ±0.5°F significantly reduce hatch rates, while improper humidity causes developmental issues.

Temperature Control System

The most critical element, requiring precision within 99.5°F ±0.5°. Many beginners make the mistake of using simple light bulbs without proper regulation, leading to fatal temperature swings. Instead, implement a feedback loop with:

• Digital thermostat (Inkbird ITC-308 recommended)
• Heating element (15-25W ceramic heat emitter)
• Backup thermometer (dual-probe for accuracy verification)
• Fan for air circulation (prevents hot spots)

Container Type	Insulation Value	Cost	Best For
Styrofoam Cooler	Excellent	$8-15	Beginners, small batches
Plastic Storage Bin	Moderate	$10-20	Medium batches, durability
Wooden Box	Good (with insulation)	$25-40	Large batches, customization

Step-by-Step Construction Guide

Phase 1: Container Preparation

Choose your container based on batch size needs. For first-time builders, a 24-quart styrofoam cooler provides excellent insulation at minimal cost. Drill precise holes for components using the following specifications:

• Ventilation: Four 1/2" holes near top (opposite sides)
• Thermometer probes: Two 1/4" holes near center
• Heating element: 1" hole at bottom rear
• Viewing window: Optional 3"x3" section replaced with clear acrylic

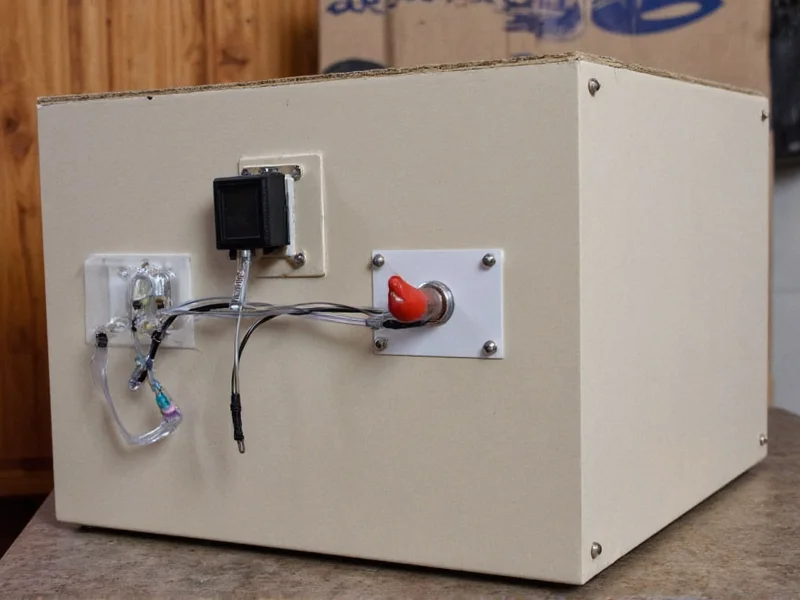

Phase 2: Installing Environmental Controls

Connect your thermostat according to manufacturer instructions, placing the sensor at egg level. Position the heating element away from direct egg contact to prevent hot spots. Install a small 12V computer fan opposite the heating element to circulate air evenly. This airflow prevents temperature stratification that commonly causes failed hatches in DIY setups.

Phase 3: Humidity Management System

Unlike temperature, humidity requires active management throughout incubation. Create a water reservoir using a shallow container placed above the heating element. For precise control:

• Use distilled water to prevent mineral buildup
• Implement wicking system with sponge for gradual evaporation
• Include hygrometer with external display for monitoring
• Add secondary reservoir for final 3 days (hatch phase)

Calibration: The Make-or-Break Step

Never skip the dry run calibration period. Test your incubator for 72 hours before adding eggs:

1. Set thermostat to 99.5°F and monitor actual temperature
2. Adjust thermostat settings until stable within ±0.2°F
3. Test humidity by adding water and verifying 50-55% range
4. Check for hot/cold spots using multiple thermometers
5. Simulate power outage to test recovery time

This testing phase reveals design flaws that would otherwise cause complete hatch failure. Many first-time builders skip this critical step, then wonder why their eggs don't develop properly.

Operating Your DIY Incubator: Proven Techniques

Successful hatching requires strict adherence to environmental parameters throughout the incubation timeline:

Incubation Timeline Requirements

• Days 1-18: 99.5°F, 50-55% humidity, turn eggs 3-5 times daily
• Days 19-21: 99.0°F, 65-70% humidity, no turning
• Candling: Days 7 & 14 to check development
• Hatch window: Days 20-21 (don't assist unless absolutely necessary)

Troubleshooting Common Issues

Even well-constructed DIY incubators encounter problems. Recognize these warning signs:

• Temperature fluctuations: Check thermostat calibration and power source stability
• Low hatch rate: Verify humidity levels during final days (most common failure point)
• Malformed chicks: Indicates temperature extremes during early development
• Mold growth: Signals excessive humidity or poor ventilation

Safety Considerations You Can't Ignore

Diy incubators involve electrical components near water – a potentially dangerous combination. Implement these safety measures:

• Use GFCI-protected outlets exclusively
• Elevate electrical components above potential water spills
• Install thermal cutoff switch (105°F) as backup safety
• Never leave unattended during initial testing phase
• Keep fire extinguisher nearby during operation

Remember that local regulations may apply to hatching birds, especially waterfowl. Check with your agricultural extension office before starting your project.

Frequently Asked Questions

How precise does temperature need to be in a DIY incubator?

Temperature must remain within 99.5°F ±0.5° for optimal development. Fluctuations beyond ±1°F significantly reduce hatch rates, with prolonged exposure to 101°F+ causing embryo death. Use a digital thermostat with 0.1°F resolution and verify with a separate thermometer.

Can I use regular household light bulbs for heating?

Standard incandescent bulbs create dangerous temperature spikes as they cycle on/off. Instead, use ceramic heat emitters with thermostatic control. These provide consistent radiant heat without the intense light that can disrupt embryonic development. LED bulbs don't produce sufficient heat for reliable incubation.

How often should I turn eggs in a DIY incubator?

Turn eggs 3-5 times daily during days 1-18, with turns spaced evenly throughout waking hours. Mark eggs with X/O on opposite sides to track turns. Stop turning on day 18 when embryos position themselves for hatching. Automatic turners improve consistency but manual turning works well with disciplined scheduling.

What's the ideal humidity level for chicken eggs?

Maintain 50-55% relative humidity for days 1-18, then increase to 65-70% for days 19-21. Higher humidity during lockdown prevents the egg membrane from drying out, which is crucial for successful pipping. Use a digital hygrometer for accurate readings, as analog models often drift significantly.

How long does it take to build a functional DIY incubator?

The construction phase takes 4-6 hours for most builders. However, the critical 72-hour calibration period before adding eggs cannot be rushed. Plan for 4 full days from start to operational readiness, including testing and adjustments. Never skip the dry run testing phase regardless of time constraints.
