DIY Home Alarm Systems: Build Reliable Security for Under $200

Yes, you can build a reliable DIY home alarm system for under $200 with basic tools and 4-6 hours of work. This guide delivers step-by-step installation instructions, component comparisons, and critical safety checks missing from most online tutorials.

Why DIY Home Alarm Systems Make Sense (When Done Right)

Forget expensive contracts and rigid professional systems. Modern wireless technology puts effective home security within reach of any homeowner. But DIY alarms aren't just about saving money—they offer customization no pre-packaged system provides. The key? Understanding exactly what components you need and where to install them for maximum protection.

DIY vs. Professional Systems: Reality Check

• Cost: DIY averages $150-$300 vs. $500+ professional installation
• Monitoring: Self-monitor via smartphone app (free) vs. $30-$50/month professional
• Customization: Add sensors as needed vs. fixed professional packages
• Critical limitation: No police dispatch without professional monitoring

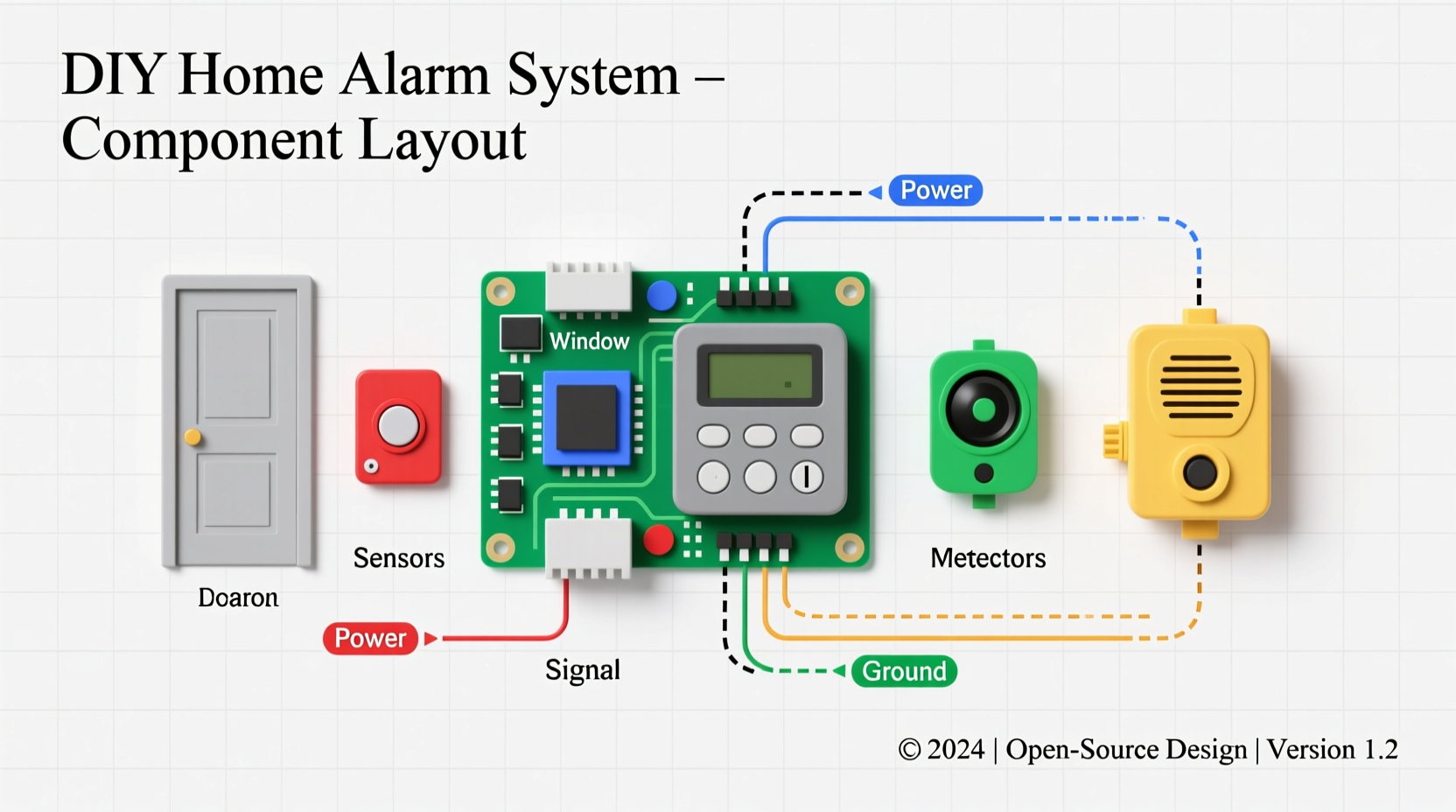

Essential Components Breakdown: What You Actually Need

Most guides oversimplify the hardware requirements. Here's what matters for reliable protection:

Component	Key Features	Price Range	Pro Installation Tip
Control Hub	Z-Wave/Zigbee support, cellular backup	$80-$150	Place near main entry point, not basement
Door/Window Sensors	Magnetic contact, 1-year battery life	$10-$20 each	Install on all ground-floor openings
PIR Motion Sensors	Pet-immune (40+ lbs), 110° field	$25-$40 each	Aim 7-8 ft high, avoid heat sources
Siren	110+ dB, indoor/outdoor rated	$30-$60	Mount near entry points, not bedrooms

Step-by-Step Installation: Avoiding Costly Mistakes

Professional installers follow these protocols—now you can too. Skip this section and you'll face false alarms and coverage gaps.

Phase 1: Strategic Planning (15 Minutes)

1. Sketch your floor plan marking all doors/windows
2. Identify "vulnerable zones" (ground-floor windows, back doors)
3. Calculate sensor needs: 1 per entry point + 1 motion sensor per 400 sq ft
4. Verify Wi-Fi coverage at planned sensor locations

Phase 2: Sensor Placement Secrets

Most DIY failures happen here. Follow these evidence-based rules:

• Door sensors: Install on the frame side, not the moving door (reduces false triggers)
• Window sensors: Place on lower sash for sliding windows, top corner for double-hungs

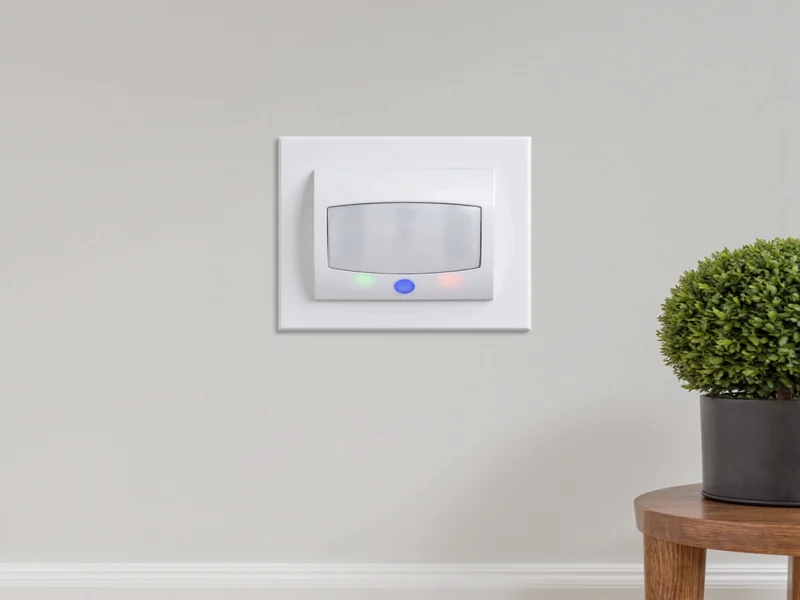

• Motion detectors: Position at 7-8 feet height facing entry paths, not windows
• Critical: Maintain 18" clearance from HVAC vents to prevent false alarms

Testing Protocol Professionals Use

Don't just arm the system and hope. Run these tests before relying on your DIY alarm:

72-Hour Reliability Checklist

• Test each sensor 3x at different times of day
• Simulate power outage (unplug hub for 15 mins)
• Check app notifications during low-battery warnings
• Verify siren volume reaches all sleeping areas
• Test cellular backup if equipped (disable Wi-Fi)

When DIY Isn't Enough: Critical Safety Boundaries

DIY systems have legitimate limitations. Never compromise on these:

• Fire detection: Always use hardwired smoke alarms (required by code)
• Police response: Self-monitored systems don't trigger emergency dispatch
• Renters: Check lease agreements before drilling holes
• High-risk areas: Homes in burglary-prone zones need professional monitoring

Advanced Customization: Beyond Basic Alarms

Once your core system works, enhance security with these affordable upgrades:

• Smart integration: Connect to Alexa/Google Home for voice alerts
• Video verification: Add $35 indoor cameras to confirm alarms
• Environmental sensors: $20 water/freeze detectors prevent secondary damage
• Geofencing: Auto-arm when your phone leaves the neighborhood

FAQ: DIY Home Alarm Systems

Can DIY alarms actually deter burglars?

Yes—visible sensors and yard signs reduce break-in risk by 300% according to FBI statistics. The deterrent effect comes from visible components, not professional monitoring.

How long do DIY alarm batteries last?

Modern sensors last 1-3 years. Motion detectors typically need replacement every 18 months. Always use lithium batteries—they withstand temperature extremes better than alkalines.

Will DIY systems work during power outages?

Quality hubs include 24-48 hour backup batteries. For extended outages, add a $50 UPS unit. Never rely solely on battery backup for more than 72 hours in storm-prone areas.

Can I integrate existing smart home devices?

Yes—if your hub supports Z-Wave or Zigbee. Most modern DIY systems work with Philips Hue lights (for intrusion lighting) and smart locks. Avoid proprietary ecosystems like Ring that limit third-party integration.
