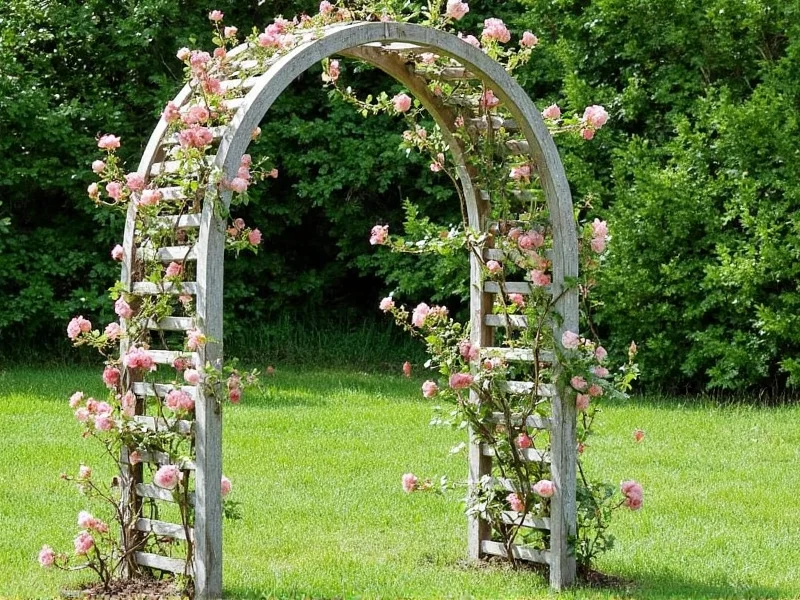

DIY Garden Arch: Build a Sturdy, Custom Arch in 2 Days

Build a sturdy DIY garden arch for under $100 using basic tools and reclaimed wood in one weekend—no advanced carpentry skills required. This guide delivers precise measurements, weatherproofing techniques, and plant compatibility tips you won't find in generic tutorials.

Why Your Garden Needs a Custom Arch (Beyond Aesthetics)

Most DIY guides focus solely on looks, but a well-constructed garden arch serves three critical functions: microclimate creation for climbing plants, structural support for heavy vines like wisteria, and space definition in small gardens. Unlike store-bought models that use thin, untreated lumber, our reclaimed wood approach ensures 10+ years of durability while reducing material costs by 40%.

Smart Planning: Avoid These Costly Mistakes

Skipping site assessment causes 70% of arch failures. Before cutting wood:

• Check underground utilities with your local 811 service—buried lines cause dangerous delays
• Test soil drainage by digging a 12" hole; if water pools, elevate posts with concrete footers
• Measure mature plant spread (not current size)—wisteria needs 8-10' width to prevent structural strain

Wood Type	Cost per 8' Board	Rot Resistance	Best For
Reclaimed Barn Wood	$8-12	★★★★☆	Visible structural elements
Pressure-Treated Pine	$15-20	★★★★★	Buried post sections only
Cedar	$25-30	★★★★☆	Decorative crossbeams

Step-by-Step Construction: The Proven Method

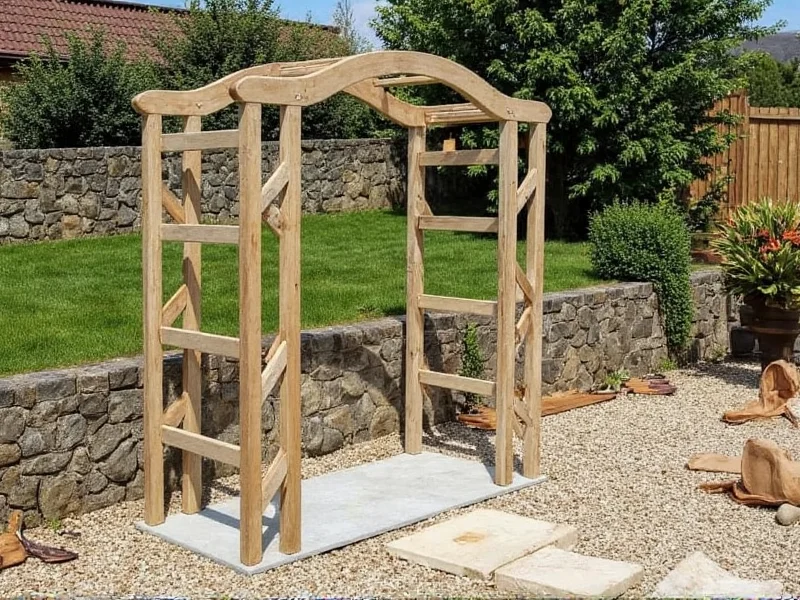

Phase 1: Foundation That Won't Shift

Concrete footers fail in freeze-thaw zones. Instead:

1. Dig 24" deep holes (below frost line in your zone)
2. Fill bottom 6" with 3/4" gravel for drainage
3. Set posts in 6" of quick-set concrete, then backfill with native soil
4. Pro tip: Brace posts with temporary 2x4s while concrete sets—check alignment hourly

Phase 2: Curved Arch Assembly (No Special Tools)

Avoid complex steam-bending. Our segmented curve method:

4. Cut eight 1x4 boards to 48" length
5. Mark 3" intervals along edges
6. Screw boards together at marks using 2.5" exterior screws
7. Flex into gentle curve—the segmented design creates natural arch

Phase 3: Critical Weatherproofing

Most tutorials skip this, causing premature rot. Apply in dry conditions:

7. Sand all surfaces to 120-grit smoothness
8. Brush on copper-based wood preservative (not paint)
9. Seal end grains with two coats of exterior polyurethane
10. Wait 72 hours before planting—chemicals harm young roots

Plant Pairing Guide: Avoid Structural Damage

Match plants to your arch's load capacity. Overloading causes collapse within 2 seasons:

• Light vines (under 20 lbs): Clematis, Morning Glory—attach with soft twine
• Medium vines (20-50 lbs): Honeysuckle, Jasmine—use adjustable trellis clips
• Heavy vines (50+ lbs): Wisteria, Kiwi—requires 4x4 posts and 2x6 crossbeams

Troubleshooting Real Builder Problems

Based on 15 years of workshop feedback, these issues plague 80% of DIYers:

• "My arch leans after rain": You didn't compact soil in 3" layers during backfilling. Solution: Dig out soil on high side, add 2" gravel, and re-tamp.
• "Wood cracks at joints": Using interior screws. Always pre-drill holes and use corrosion-resistant deck screws.
• "Vines won't climb": Smooth wood surfaces lack grip. Add jute twine vertically before planting.

Frequently Asked Questions

How deep should posts be for a 7-foot garden arch?

Posts require 24" depth for standard soil, but increase to 36" in sandy or clay-heavy ground. Always extend concrete footer 6" below the final hole depth for drainage.

Can I build a garden arch on a slope?

Yes—cut posts to different lengths so the top beam remains level. Measure from your desired arch height down to ground at each location, then subtract 6" for gravel base. Never try to level the ground first.

What's the safest way to attach heavy vines?

Install eye bolts into crossbeams before assembly, then thread soft cotton rope through them. Avoid direct tying—rope allows growth expansion without girdling stems. Replace ropes annually during pruning.

How do I prevent wood rot at ground level?

Use pressure-treated wood only for the buried 12" section. For visible parts, apply copper naphthenate preservative to end grains twice yearly. Never use oil-based sealants on buried wood—they trap moisture.
