DIY Door Frame: Build in One Weekend (Step-by-Step Guide)

You can build a sturdy interior door frame in one weekend for under $100 using basic tools. This guide delivers precise measurements, lumber selection criteria, and installation techniques proven to prevent common alignment errors that cause sticking doors.

Why Build Your Own Door Frame?

Replacing a worn door frame saves $150-$300 compared to professional installation while giving you complete control over materials. Unlike pre-hung units, DIY framing lets you customize thickness for uneven walls and select sustainable lumber. Most homeowners complete this project in 6-8 hours using tools they already own.

Essential Materials	Quantity	Critical Specifications
Pressure-treated lumber	2 studs	2x4" x 8' (for rough opening)
Pre-primed pine	3 pieces	1x6" x 82" (jamb components)
Shims	15-20	Wood composite (avoid plastic)
8d finish nails	50	2" length with ring shanks

Step-by-Step Construction Process

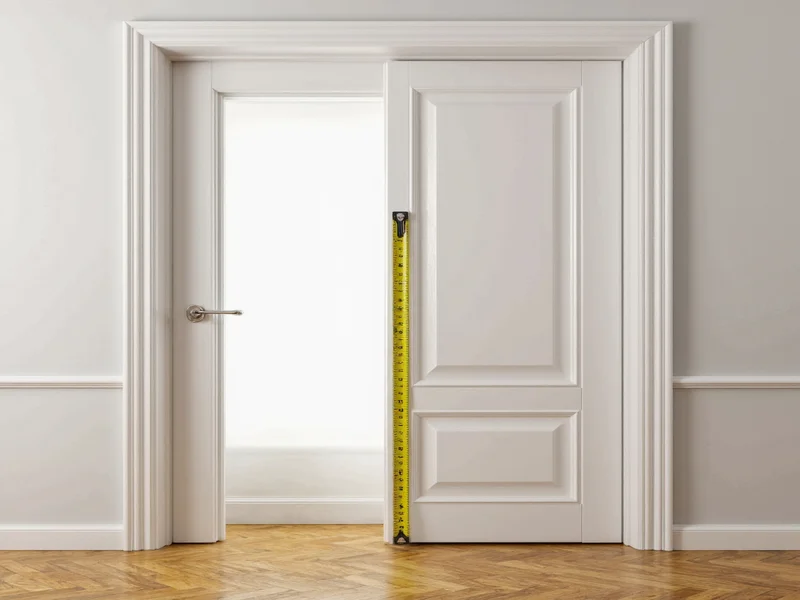

Step 1: Measure Twice, Cut Once

Pro Tip: Measure the rough opening at top, middle, and bottom. Subtract 1/2" from height/width for clearance. Standard interior doors require 2" wider and 2.5" taller openings than the door slab.

• Height: Door height + 2.5" (allows for flooring clearance)
• Width: Door width + 2" (1" per side for shims)
• Depth: Match wall thickness (usually 4.5" for 2x4 walls)

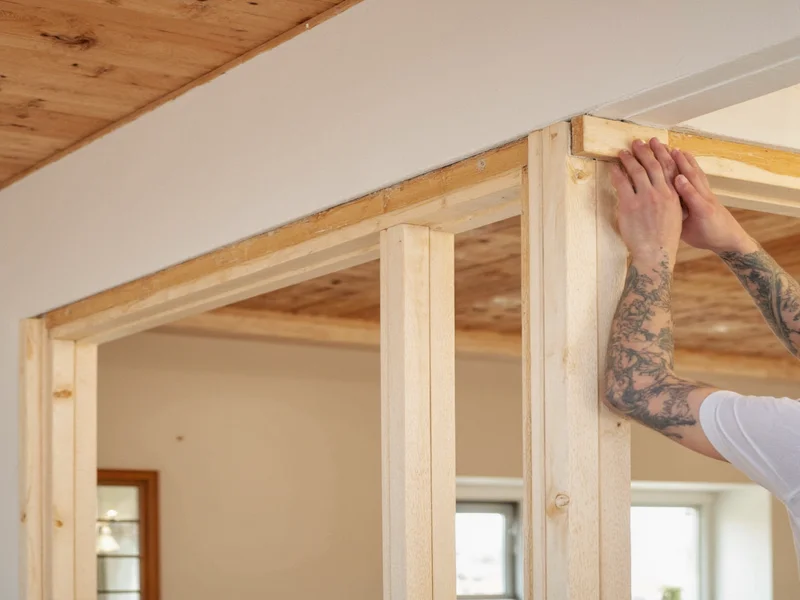

Step 2: Frame the Rough Opening

Install temporary braces before removing old framing. Cut king studs to wall height. Add header (double 2x4) supported by jack studs. Verify plumb with level - critical for preventing future sticking.

Common Mistake: Skipping the header in non-load-bearing walls causes sagging. Always use double top plates even for interior doors.

Step 3: Assemble the Door Jamb

Pre-cut jambs to final dimensions using 45° miter saw cuts at corners. Assemble with pocket screws before installation for perfect 90° angles. Apply wood glue at joints - this prevents seasonal shifting better than nails alone.

• Left jamb: Height = rough opening height - 1/4"
• Right jamb: Same as left
• Header: Width = rough opening width - 1/2"

Avoid Costly Alignment Errors

70% of DIY door failures come from improper shimming. Follow this foolproof method:

1. Place door in opening without hinges
2. Insert shims at hinge points (top, middle, bottom)
3. Check plumb on both sides with 4' level
4. Nail through shims into framing (never into drywall)
5. Test door swing before final nailing

Pro Insight: Use tapered shims in pairs (one inverted) to create adjustable thickness. Drive nails at 45° angles through shims into framing - this prevents rotation during seasonal changes.

Finishing for Long-Term Performance

Before installing trim, seal all wood edges with primer. This prevents moisture absorption that causes warping. For high-humidity areas like bathrooms, use:

• Moisture-resistant jamb lumber (like poplar)
• Butyl tape between jamb and framing
• Expansion gap fillers at header

Test door operation for 48 hours before final trim installation. Wood expands significantly after installation - waiting prevents binding issues.

FAQs: DIY Door Frame Essentials

Can I install a door frame in a load-bearing wall?

Yes, but you must install a properly sized header supported by jack studs. Consult span tables for your lumber type - undersized headers cause structural damage. For walls supporting upper floors, hire an engineer to calculate requirements.

What's the minimum clearance needed around the door?

Maintain 1/8" clearance on sides and top for smooth operation. Bottom clearance should match your flooring thickness (typically 1/2" for hardwood). Too little clearance causes sticking; too much creates drafts.

How do I fix a door that sticks after installation?

First identify the binding point using pencil rub marks. Plane the specific area by 1/16" increments. Never force the door - this damages hinges. If multiple points bind, check jamb plumb and adjust shims behind the problematic side.

Can I reuse old door hardware with a new frame?

Only if the new jamb matches the old thickness (usually 1 1/8"). Measure hinge mortise depth and strike plate location. Most modern doors use standardized 3 1/2" hinges, but older homes may require custom routing.
