Creating your own dip bar at home delivers an affordable, customizable solution for upper body strength training. Unlike store-bought options that cost $250+, a well-constructed DIY dip bar supports 300+ pounds while fitting perfectly in your space constraints. This guide reveals construction techniques that prioritize structural integrity over quick fixes.
Why Build Your Own Dip Bar Instead of Buying?
Commercial dip stations often compromise on three critical factors: space efficiency, customization, and cost. A properly engineered DIY dip bar solves these issues while providing comparable stability to professional equipment. Consider these advantages:
- Cost savings - Build for 60-70% less than quality commercial units
- Space optimization - Design specifically for your room dimensions
- Material control - Choose sustainable or reclaimed materials
- Custom height - Perfect fit for your body proportions
Planning Your DIY Dip Bar Project
Before cutting materials, determine your specific requirements. Most beginners overlook critical planning elements that affect safety and usability.
Essential Dimensions Guide
| User Height | Bar Height | Frame Width | Depth |
|---|---|---|---|
| Under 5'6" | 16-18 inches | 20-22 inches | 24 inches |
| 5'6"-6'0" | 18-20 inches | 22-24 inches | 26 inches |
| Over 6'0" | 20-22 inches | 24-26 inches | 28 inches |
These measurements ensure proper clearance for full range of motion during dips while maintaining stability. The frame width directly impacts shoulder positioning - too narrow causes impingement, while too wide reduces effectiveness.
Material Selection: Wood vs. Metal Options
Your material choice affects durability, cost, and construction complexity. Both approaches work when executed properly.
Wood Construction Method
Ideal for beginners with basic tools, wood construction offers surprising strength when using proper techniques. Select:
- 4x4 pressure-treated posts for vertical supports
- 2x6 lumber for horizontal bars (laminated for strength)
- Grade 8 carriage bolts (not nails or screws)
- Wood glue rated for structural applications
The secret to wood dip bar strength lies in proper lamination. Instead of using a single 2x6, glue and bolt three 1x6 boards together. This creates a much stronger composite bar that won't flex under load.
Metal Pipe Construction Method
For those with welding access or seeking maximum durability, steel pipe construction delivers professional results:
- 1.5-inch diameter steel pipe (schedule 40)
- 2-inch square tubing for base frame
- Welding or high-strength mechanical joints
- Textured grip coating for hands
Metal construction requires more specialized tools but provides superior longevity. The critical factor is proper joint reinforcement - never rely solely on pipe fittings without additional bracing.

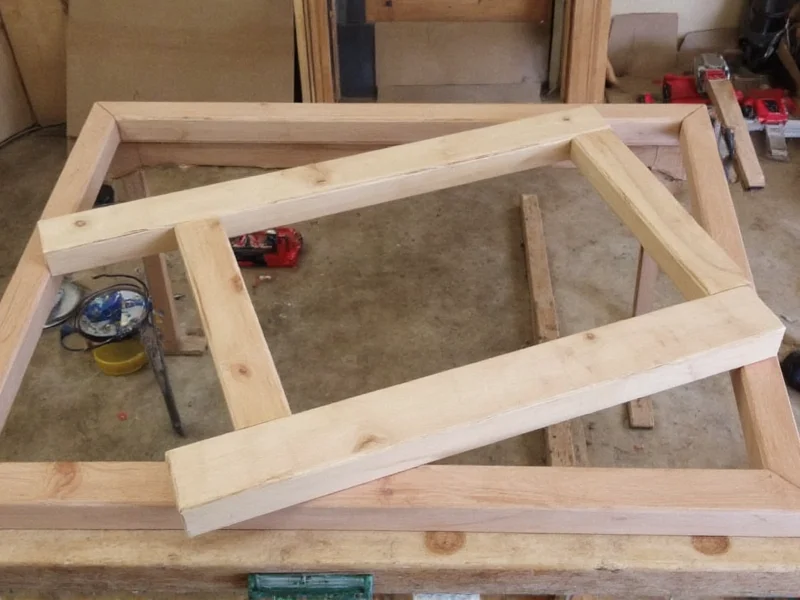

Step-by-Step Construction Guide
Follow these steps to ensure structural integrity. Skipping any step compromises safety.
Foundation Preparation
Most DIY dip bar failures occur at the base. Create a stable foundation:
- Mark your footprint on the floor with painter's tape
- Install 4x4 base plates secured with concrete anchors (for concrete floors) or 12-inch lag bolts (for wood floors)
- Add diagonal bracing between vertical and horizontal members
- Verify all corners at perfect 90-degree angles before final assembly
Critical Reinforcement Points
These three areas require special attention to prevent catastrophic failure:
- Bar-to-post connections - Use through-bolts with washers on both sides
- Base corners - Add triangular gussets or cross-bracing
- Foot placement - Ensure 6+ inches of vertical support below bar height
Safety Testing Protocol
Never skip this critical phase. Proper testing prevents injuries:
- Apply gradual pressure with 50% of your body weight
- Check for any movement at connection points
- Add 25% more weight incrementally while checking stability
- Perform side-to-side pressure tests
- Listen for creaking or cracking sounds during testing
If any movement occurs during testing, disassemble and reinforce before proceeding. A properly constructed dip bar should show zero flex under your body weight.
Usage Tips for Maximum Benefit
Optimize your DIY dip bar experience with these techniques:
- Adjust hand position width based on target muscles (narrow for triceps, wide for chest)
- Maintain slight forward lean for chest emphasis
- Keep elbows slightly forward rather than flared out
- Lower until upper arms reach parallel to floor
- Use parallettes on top for advanced variations
Troubleshooting Common Issues
Solve these frequent DIY dip bar problems:
Wobble or Movement
Add diagonal cross-bracing between base legs or secure to wall studs if possible. For wood constructions, check all bolt tightness weekly during initial use.
Grip Discomfort
Wrap bars with athletic tape or apply textured grip coating. Avoid foam padding which compresses during use.
Space Constraints
Consider wall-mounted or fold-down designs that secure to structural wall elements rather than freestanding frames.
Frequently Asked Questions
How much weight can a DIY dip bar safely support?
A properly constructed DIY dip bar using recommended materials and techniques supports 300+ pounds. The critical factor is proper reinforcement at connection points - through-bolts with washers, not screws or nails.
Can I build a dip bar without power tools?
Yes, but with limitations. Hand tools work for wood construction using pre-cut lumber, but metal construction requires welding or specialized pipe tools. Expect significantly longer build time without power tools.
What's the minimum ceiling height needed for a DIY dip bar?
You need at least 8 feet of clearance from floor to ceiling. Taller users (over 6 feet) require 8.5-9 feet to perform full range of motion dips without headroom issues.
How do I prevent wood bars from splintering over time?
Seal wood bars with multiple coats of marine-grade polyurethane. Sand between coats for smooth finish. Reapply annually or when grip feels rough. Never use bare wood for contact surfaces.
