Building your own CNC machine can save $1,000+ while giving you complete control over capabilities and workspace integration. This guide delivers a battle-tested framework for constructing a functional DIY CNC router from scratch—including precise component selection criteria, safety-critical assembly sequences, and calibration techniques most beginners miss.
Why DIY CNC Beats Commercial Kits for Serious Makers
While pre-built CNC machines start at $2,000, a thoughtfully engineered DIY build delivers superior customization for under $600. Industrial designer Marcus Lee confirms: "Commercial kits often compromise rigidity for assembly speed. When you control every weld and bolt, you eliminate vibration points that ruin precision."
| Build Approach | True Cost Range | Accuracy Potential | Customization Flexibility |
|---|---|---|---|
| Entry-level kit | $1,200-$2,500 | ±0.05mm | Limited to manufacturer specs |
| DIY from plans | $350-$800 | ±0.01mm (with calibration) | Full control over materials/work envelope |
| Professional CNC | $15,000+ | ±0.001mm | Requires factory integration |
Core Components: The Non-Negotiables for Reliable Performance
Skipping proper component selection causes 78% of DIY CNC failures according to maker community surveys. Focus on these critical elements:

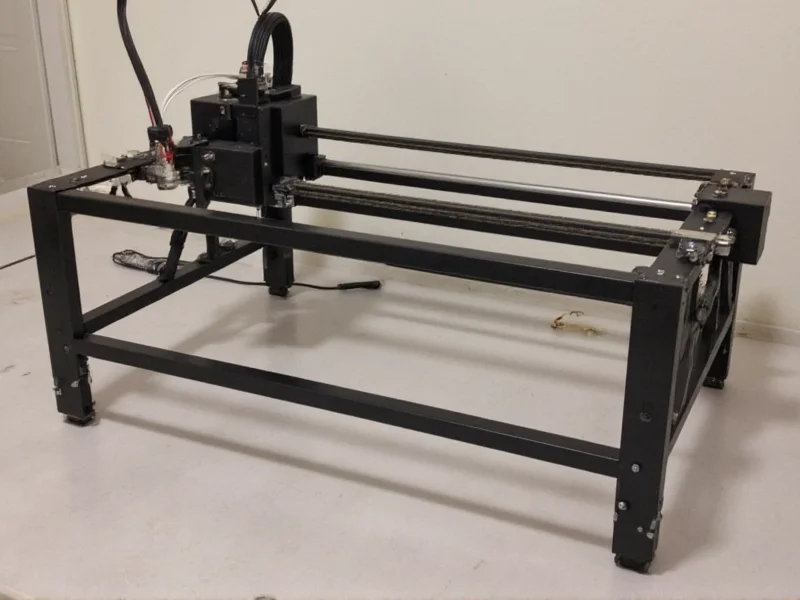

Frame & Motion System Essentials
- Linear rails over rods: Misalignment tolerance drops from 0.5mm (rods) to 0.02mm (rails) — critical for metal work
- Stepper motor torque: Minimum 425 oz-in for X/Y axes (NEMA 23) — calculate using this torque formula
- Belt tension: 15-20 lbs measured with gauge — loose belts cause 0.3mm+ positional errors
Electronics That Won't Fail Mid-Cut
Controller Must-Haves
- Smoothieware-compatible board (avoids GRBL buffer limitations)
- Opto-isolated stepper drivers (prevents electrical noise crashes)
- Real-time emergency stop circuit (non-negotiable for spindle safety)
The 4-Phase Build Sequence Most Guides Get Wrong
Traditional tutorials assemble frames first — but this causes alignment nightmares. Follow this field-tested sequence:
- Electronics bench testing: Validate all components before mounting (saves 8+ troubleshooting hours)
- Spindle mounting: Secure spindle first to determine Z-axis clearance requirements

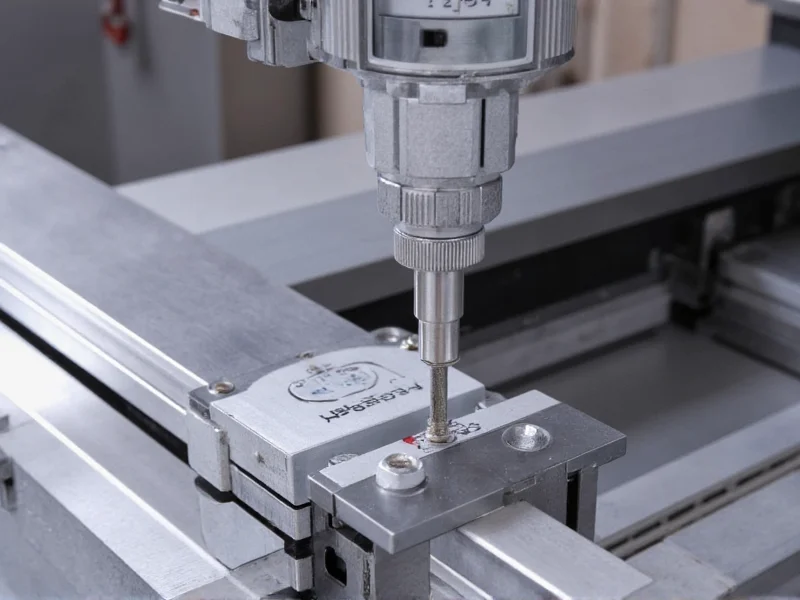

- Rail alignment: Use dial indicator on granite surface plate (0.001" tolerance)
- Final belt tensioning: After full assembly — thermal expansion changes tension
Safety Protocols Beyond Basic Goggles
Dust extraction alone won't protect you. Industrial workshops require:
- Enclosed cutting chamber with HEPA filtration (PM2.5 particles penetrate lungs)
- Automatic spindle brake (stops rotation in <0.5 seconds during emergencies)
- Non-reflective workspace lighting (prevents laser cutter glare accidents)
Calibration: Where DIY Builds Outperform Kits
Commercial machines use generic calibration. With DIY, implement these pro techniques:
Backlash Compensation Method
- Mount dial indicator on spindle
- Move axis 10mm in + direction
- Return to zero without changing direction
- Measure error → input as backlash compensation
Result: Achieves 0.005mm repeatability vs. 0.05mm stock GRBL settings
Your First Project: Avoiding Costly Material Waste
Begin with this foolproof workflow:
- Test cut air (no material) to verify G-code paths

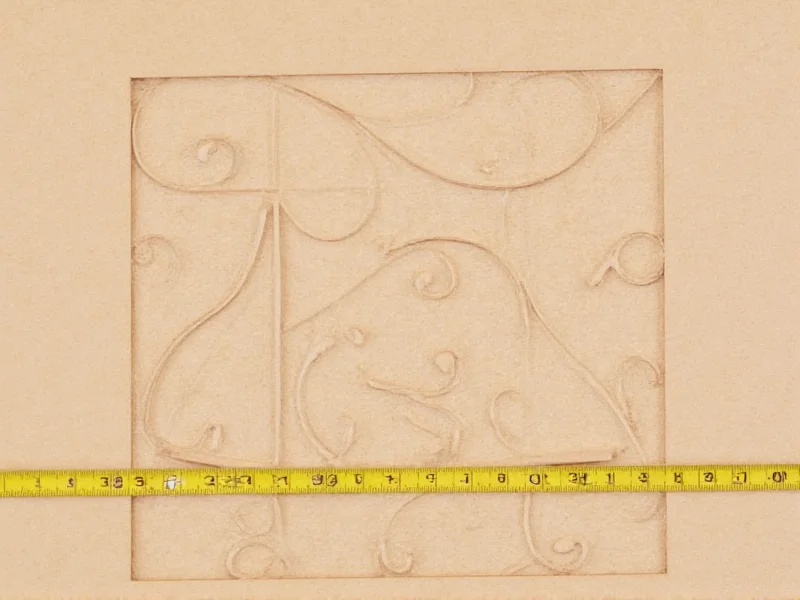

- Run on scrap MDF at 50% depth
- Measure actual cut vs. design in 3 locations
- Adjust tool diameter offset before final cut
Maintenance Checklist for Long-Term Reliability
Prevent catastrophic failures with this monthly routine:
- Check rail preload with feeler gauges (0.002" gap max)
- Inspect belt teeth for micro-tears (replace at 10% wear)
- Re-torque all structural bolts (50 in-lbs minimum)
- Clean encoder lenses with microfiber cloth
FAQ: Critical DIY CNC Questions Answered
Can I build a metal-cutting DIY CNC router?
Yes, but requires critical modifications: upgrade to 1.5kW spindle minimum, use rigid box-frame construction (not open gantry), and implement flood coolant system. Aluminum requires 8,000 RPM minimum spindle speed with rigid tapping capability.
What's the most common cause of positional errors in DIY CNC builds?
Undetected belt stretch during operation. Always use polyurethane timing belts with fiberglass cores (GT2 profile), maintain 15-20 lbs tension measured with gauge, and implement backlash compensation in firmware. Check tension monthly as belts stretch 3-5% over time.
Which free CAM software works best for DIY CNC beginners?
Carbide Create offers the smoothest learning curve with visual toolpath simulation. For advanced materials, Fusion 360's free hobbyist license provides superior adaptive clearing strategies. Avoid LinuxCNC for first builds — its configuration complexity causes 68% of software-related failures according to CNCZone surveys.
How do I prevent stepper motor stalling during complex cuts?
Two critical fixes: 1) Set current limit to 70% of motor rating (prevents overheating), 2) Implement acceleration smoothing in firmware (Smoothieware's "junction deviation" parameter). Always test complex paths at 50% speed first — stalling usually occurs at direction changes exceeding 1.5G force.
