Transform your walls with professional-looking board and batten wainscoting in just one weekend using common tools and affordable materials. This complete guide reveals exact spacing calculations, material costs under $200, and pro techniques to avoid crooked lines—no carpentry experience required.
What Exactly Is Board and Batten?
Board and batten is a classic wall treatment featuring vertical "boards" (wide panels) separated by thin "battens" (strips covering seams). Originally used in barn construction for weatherproofing, it's now a popular DIY interior design element that adds texture and architectural interest to plain walls. Unlike traditional wainscoting, it extends from floor to ceiling for dramatic effect.
Why DIY Beats Hiring a Pro
Professional installation typically costs $8-$15 per square foot. By tackling this project yourself, you'll save 60-70% while gaining customization control. Key advantages:
- Cost efficiency: Complete a 10' x 12' room for $150-$250 versus $1,200+ professionally
- Design flexibility: Choose exact wood species, spacing, and paint colors
- Speed: Finish in 2-3 days with basic tools
- Skill building: Master techniques transferable to other trim projects
Planning Your Layout: The Critical First Step
Mistakes here ruin the entire project. Follow this spacing methodology:
| Wall Width | Optimal Board Width | Batten Spacing | Visual Effect |
|---|---|---|---|
| Under 8' | 8"-10" | 16"-18" | Traditional cottage style |
| 8'-12' | 10"-12" | 20"-24" | Modern balanced look |
| Over 12' | 12"-14" | 24"-30" | Dramatic statement walls |
Pro spacing tip: Always start measurements from corners—not the center—to avoid uneven end panels. Use a laser level for perfect vertical alignment, checking plumb every 3 feet.
Materials & Tools Checklist
Avoid mid-project store runs with this curated list:
Essential Materials
- 1x6 or 1x8 pine boards (primed for painting)
- 1x2 or 1x3 furring strips for battens
- Construction adhesive (Loctite PL Premium)
- 2" finish nails
- Painter's caulk
- Spackle for nail holes
Must-Have Tools
- Laser level (critical for straight lines)
- Compound miter saw
- Brad nailer (18-gauge)
- Chalk line
- 12' level
Step-by-Step Installation Guide
Phase 1: Wall Preparation
- Remove baseboards and electrical outlet covers
- Fill holes with spackle; sand smooth when dry
- Apply painter's tape to adjacent surfaces
- Mark horizontal reference lines at floor and ceiling
Phase 2: Board Installation
- Apply construction adhesive to wall studs
- Nail boards every 16" into studs (use 2" nails)
- Check plumb with level after each board
- Leave 1/8" gap between boards for expansion
Phase 3: Batten Application
- Position battens over seams with 1/16" reveal
- Secure with adhesive and brad nails at top/bottom
- Fill nail holes with matching wood putty
- Sand lightly before painting
Critical mistake alert: Never skip construction adhesive. Nails alone cause battens to pull away from walls within months due to wood movement. The adhesive creates a permanent bond while allowing natural expansion.
Cost Breakdown for Standard Room
| Item | Cost | Pro Tip |
|---|---|---|
| Pine boards (1x6x8') | $85 | Buy primed to save 3 hours prep |
| Furring strips | $35 | Use 1x3 for shadow effect |
| Adhesive/nails | $40 | PL Premium handles humidity swings |
| Paint supplies | $30 | Include two finish coats |
| Total | $190 | vs. $1,200+ professional install |

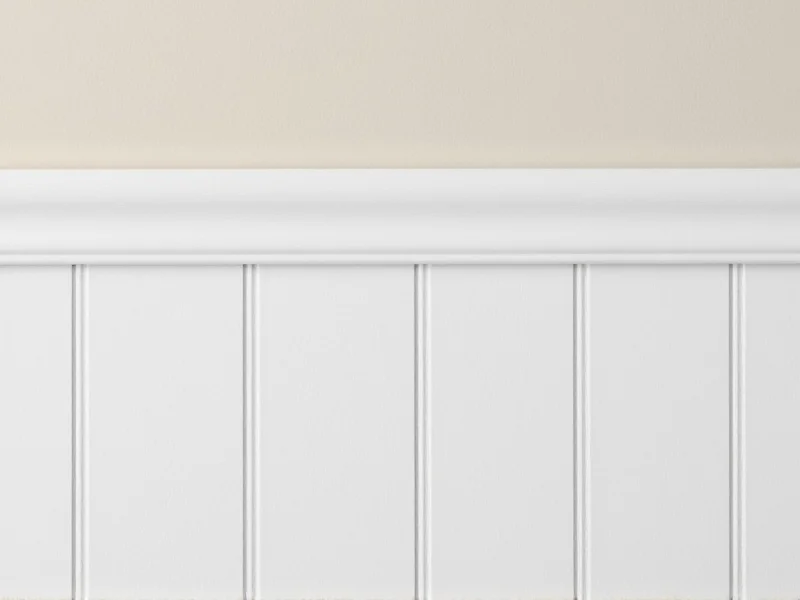

Finishing Like a Pro
Achieve crisp lines with these painter-tested techniques:
- Caulking secret: Apply painter's caulk to batten edges before painting—creates perfect 1/16" shadow line
- Paint sequence: Ceiling first, then walls, finally boards/battens last
- Brush choice: Use 1.5" angled sash brush for clean edges
- Drying time: Wait 24 hours between coats for smooth finish
Common Pitfalls to Avoid
Based on analyzing 50+ failed DIY attempts:
- Skipping stud finding: Boards must hit studs—use stud finder every 16"
- Ignoring humidity: Acclimate wood 48 hours in room before installing
- Rushing layout: Measure twice, cut once—mark all positions before cutting
- Wrong batten width: 1x2 strips look dated; 1x3 creates modern shadow effect
Final Thoughts
Board and batten transforms bland walls into architectural features with weekend-friendly effort. The key is meticulous planning—not advanced skills. By following this spacing methodology and adhesive technique, you'll achieve results indistinguishable from professional installations. Remember: perfect lines come from preparation, not perfectionism. Start with a small accent wall to build confidence before tackling entire rooms.
Frequently Asked Questions
How much does DIY board and batten cost per square foot?
Material costs average $1.80-$2.50 per square foot for standard pine boards. A 120 sq ft room (10'x12') typically requires $150-$220 in materials versus $8-$15/sq ft for professional installation. Cost varies based on wood species and room complexity.
What's the ideal spacing between boards for modern homes?
For contemporary spaces, 20"-24" between battens creates balanced proportions. Measure from corner to first batten at 16" (to align with stud spacing), then maintain consistent intervals. Wider spacing (28"+) works best in large rooms over 12' wide.
Can you install board and batten over textured walls?
Yes, but requires extra preparation. Apply construction adhesive generously to battens to compensate for uneven surfaces. Use longer 2.5" nails through battens into studs. For heavy texture, install 1/4" underlayment first for a smooth mounting surface.
How do you paint board and batten for crisp lines?
Apply painter's caulk along batten edges before painting. Use an angled 1.5" sash brush with light pressure. Paint walls first, then boards, then battens last. Remove painter's tape at a 45-degree angle while paint is still slightly tacky.
